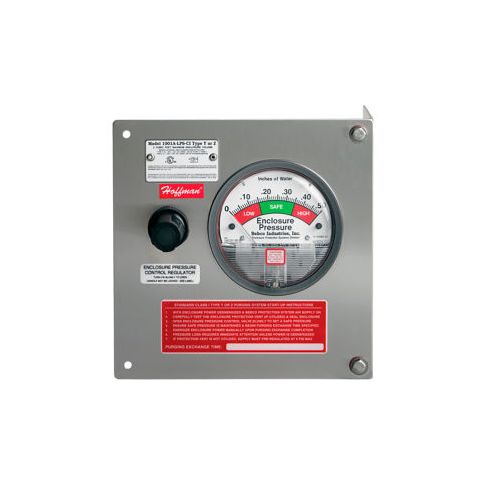

Hoffman A1001YZUMC2 Purge System, Univ. Mount, 10CF
Small-Volume Purging/Pressurization Systems are an alternative to NEMA Type 7 or 9 enclosures. The C1 model allows general-purpose enclosures, up to two cubic feet, to be used in certain Class 1 hazardous locations. The C2 model allows general purpose enclosures, up to 10 cubic feet, to be used in certain Class 2 hazardous locations. .
Features:
Small-Volume Purging/Pressurization Systems are an alternative to NEMA Type 7 or 9 enclosures. The C1 model allows general-purpose enclosures, up to two cubic feet, to be used in certain Class 1 hazardous locations. The C2 model allows general purpose enclosures, up to 10 cubic feet, to be used in certain Class 2 hazardous locations. .
Features:
- Universal mount
- Available in two models for enclosures with a maximum enclosure volume of up to 2 or 10 cubic feet
- Mounting plate: Type 316 brushed stainless steel
- Regulator body: zinc with enamel finish
- Enclosure pressure gauge: aluminum with enamel finish
- Polycarbonate regulator handle
- Fastener hardware available in aluminum and stainless steel
- Includes tamper-proof regulator with gauge (TR-10G) to comply with NFPA standard requiring protection against over pressurization.
Product Specifications
- BRANDHoffman®
- WIDTH INCHES9.00
- DEPTH INCHES5.00
- HEIGHT INCHES9.00
- MANUFACTURERS PART NUMBERA1001YZUMC2
- VOLUME (M3)0.28
- MODEL1001, Class 2
- WIDTH MM229
- DEPTH (MM)127
- DESCRIPTIONSmall-Volume Type Y & Z Purging/Pressurization System
- HEIGHT MM229
- WEIGHT (LB.)8.50
- WEIGHT (KG)3.86
- VOLUME (FT.3)10
