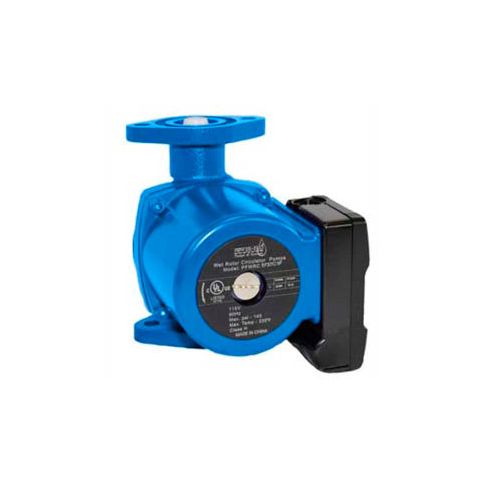

Power-Flo® Circulator With Flanged Connection PFWRC3737C1F - GF 25 Flange 115V Cast Iron PFWRC3737C1F
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
281-83313B21
Power-Flo® Circulator With Flanged Connection PFWRC3737C1F - GF 25 Flange 115V Cast Iron PFWRC3737C1F
This item is NOT returnable.
This item is restricted and will not ship to the following states: CA.
Power-Flo® Circulator With Flanged Connection PFWRC3737C1F - GF 25 Flange 115V Cast Iron
Power-Flo circulator pumps are low noise, low leakage, reliable operation and easy installation. Single and three speed compact, efficient wet rotor circulators for closed loop (cast iron volute) hydronic heating and cooling circulation and open loop (bronze and stainless steel) domestic water recirculation applications. FOR INDOOR USE ONLY.
Features:
Power-Flo circulator pumps are low noise, low leakage, reliable operation and easy installation. Single and three speed compact, efficient wet rotor circulators for closed loop (cast iron volute) hydronic heating and cooling circulation and open loop (bronze and stainless steel) domestic water recirculation applications. FOR INDOOR USE ONLY.
Features:
- Motor: 2 pole, 3600 Rpm, single phase, PSC with Thermal protection
- Liquid Temperature: 32 230°F
- Max System Pressure: 145 PSI
- Insulation: Class H
- Volute: Cast Iron
- Connection: GF 25 Flange with two 1/2" Dia. bolt holes
- UL listed
- Warranty: 3 year
Product Specifications
- BRANDPower-Flo Technologies
- LENGTH INCHES5-3/8
- WIDTH INCHES6-3/8
- HEIGHT INCHES6-1/2
- WEIGHT LBS12.5
- COLORBlue
- HOUSING MATERIALCast Iron
- RPM3600
- VOLTAGE115
- MAXIMUM OPERATING TEMPERATURE °F230
- PHASE1
- HERTZ60
- AMPS3
- WATTAGE335
- MAXIMUM FLOW GPM36
- CONNECTION TYPEFlanged
- MOTOR TYPEPSC
- INCLUDESPump, (2) Gasket Rings, (2) Screws & Manual
- APPROVALS OR CERTIFICATIONSUL
- LIMITED WARRANTY YEARS3
- MANUFACTURER'S PART NUMBERPFWRC3737C1F
- TEMPERATURE RANGE °F32 - 230
- NUMBER OF POLES2
- CAPACITOR SIZE - RUN25mfd / 200V
- MAXIMUM PSI145
- HEAD FEET0 - 36
- FLANGE CONNECTIONGF 25
- FLOW U.S. GPM0 - 36
- NUMBER OF SPEEDS1
- FLANGE MATERIALCast Iron
Additional Information
- UNSPSC: 40101602
- Brand: Power-Flo Technologies Inc C/O United Electric
- Color: Blue
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 8.00
- Package Width: 6.50
- Package Height: 7.50
- Package Weight: 12.50
Product info last updated on November 7, 2024 11:51am UTC
Category: Pumps and Circulators
