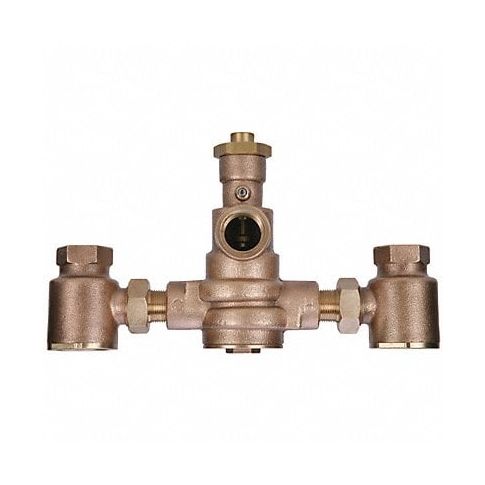

Mixing Valve Brass 42 gpm MPN:3/4 LFMM431-1
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-15W074
Mixing Valve Brass 42 gpm
Mixing Valve Brass 42 gpm is a reliable temperature control solution that ensures precise blending of hot and cold water for various applications. The mixing valve has an impressive flow rate of 42 gpm, making it ideal for large establishments such as hospitals, schools, hotels, and commercial buildings. Made of high-quality brass material, this unit provides longevity while resisting corrosion and wear. Additionally, the mixer comes equipped with easy-to-use temperature adjustment controls, enabling users to regulate water temperatures according to their needs. Overall, Mixing Valve Brass 42 gpm is an optimal choice for those who require accurate temperature control in medium to large establishments with high water consumption.
Powers • Max. pressure: 125 psi Temp. range: 90° to 160°FFeature paraffin-based, advanced thermal actuation design to sense and adjust outlet temperature for precise temperature control. NPT connection, brass construction. Virtual shutoff if supply pressure fails. Vandal-resistant locking mechanism. Rotatable union triple-duty checkstops. Low-Lead models are certified for use in potable water applications.All models meet ASSE 1017 and CSA B125 standards.Master Water Mixers
Technical Specifications
- Item Mixing Valve
- Body Material Brass
- Flow Rate 42 gpm
- Inlet Type FNPT
- Outlet Type FNPT
- Inlet Size 3/4 in
- Outlet Size 3/4 in
- Temp. Range 90 Degrees to 160 Degrees F
- Max. Pressure 125 psi
- Overall Height 7 1/4 in
- Overall Width 11 3/8 in
- Inlet Temperature (Cold) 40 Degrees to 80 Degrees F
- Inlet Temperature (Hot) 120 Degrees to 180 Degrees F
- Standards ASSE 1017, CSA B125
Manufacturer Details
- Manufacturer: Powers
- Condensed Mfg Number: 34LFMM4311
- MPN: 3/4 LFMM431-1
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8481809015
- GDS Category Name: Mixing Valves
- GDS Family Name: Pressure and Temperature Control Valves
- GDS Segment Name: Plumbing
- UNSPSC: 40141609
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Valves
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Control valves
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:36pm UTC
Category: Pressure and Temperature Control Valves
