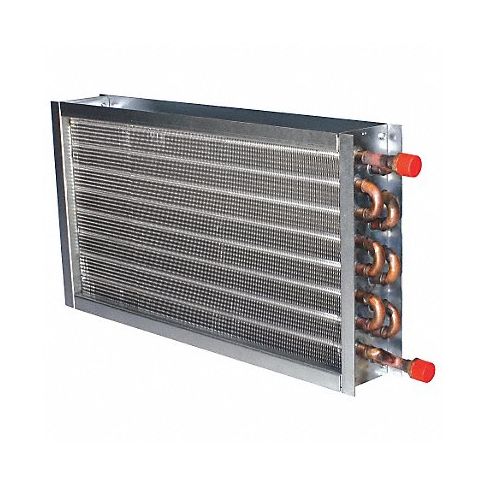

Hydrnc Heating Coil 375 cfm Flanged MPN:W101612N
Hydrnc Heating Coil 375 cfm Flanged
Introducing our new Hydronic Duct Heating and Cooling Coil the perfect solution for large commercial buildings looking to optimize their heating and cooling systems. This innovative coil uses hot or chilled water to produce supplementary warm or cool air, offering greater flexibility and control over your building's climate. Its flanged casing makes installation and maintenance easy, while the durable aluminum fins and galvanized steel casing ensure long-lasting performance. With a flow capacity of 0.9 gpm and required airflow of 375 cfm, this coil is ideal for both replacement and new construction applications. Improve the efficiency and comfort of your building today with our Hydronic Duct Heating and Cooling Coil.
Top product features:
- Casing Connection Type: Flanged
- Flow Capacity: 0.9 gpm
- Required Air Flow: 375 cfm
Top product applications:
- Air conditioning systems in large commercial buildings
- Heating systems in large commercial buildings
- Cooling and heating supplementary airflow in commercial ductwork
Hydronic duct heating and cooling coils use hot or chilled water to produce supplementary warm or cool air. They're used in both replacement and new construction applications in large commercial buildings. Coils in a flanged casing mount in air-handling units or to ductwork, while coils in a slip and drive casing can be directly connected to the ductwork. Coil connections are 3/4" MPT copper tubing. The coils have aluminum fins in a galvanized steel casing.
Technical Specifications
- Item Hydronic Duct Heating and Cooling Coil
- Casing Connection Type Flanged
- Flow Capacity 0.9 gpm
- Required Air Flow 375 cfm
- Number of Feeds 1
- Number of Rows 1
- Fin Length 12 in
- Fin Height 6 in
- Casing Height 8 in
- Casing Width 14 in
- Casing Depth 4 in
- Casing Material 16 ga Galvanized Steel
- Connection Type MPT Copper
- Temperature Entering Coil 55 Degrees F
- Temperature Leaving Coil 76 Degrees F
- Tube Material Copper
- Tube Outer Diameter 5/8 in
- Tube Wall Thickness 3/16 in
- Air Flow 375 cfm
- Air Pressure Drop 0.1 psi
- Face Area 0.5 sq ft
- Fin Material Aluminum
- Fin Thickness 0.006 in
- Fin Type Sine
- Fins per Inch 10
- Fluid Type Hot Water
- Heating Capacity 8,600 BtuH
- Supply and Return Connection 3/4 in
- Standards AHRI to AHRI Standard 410
Manufacturer Details
- Manufacturer: Precision Coils
- Condensed Mfg Number: W101612N
- MPN: W101612N
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7322900045
- GDS Category Name: Hydronic Duct Heating and Cooling Coils
- GDS Family Name: Hot Water and Steam Heating Systems and Accessorie
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101810
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 10
- UNSPSC Commodity Name: Coil duct heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
