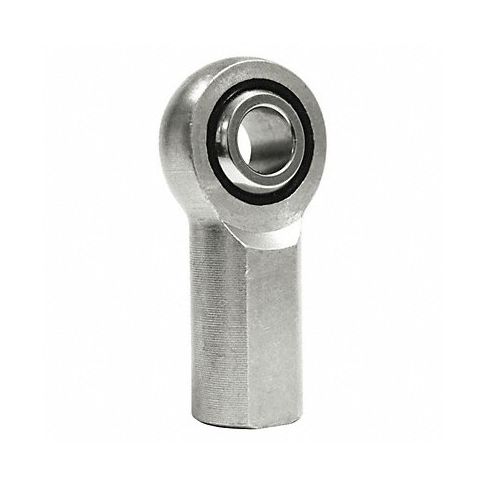

Female Rod End RH 3/16 in Bore #10-32 MPN:NFR3

This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.

Technical Specifications

• Item Nylon/PTFE Race Rod End
• Type Female Plain
• Ball 52100 Steel Spherical
• Thread Right Hand
• Thread Size #10-32
• Inside Dia. 0.189/0.191 in
• Bearings 52100 Steel Spherical Ball
• Housing Carbon Steel
• Construction Follows SAE Specification J1120
• Dimension A #10-32 in
• Dimension AA 0.190/0.192 in
• Dimension E 0.625 in
• Dimension G 1.062 in
• Dimension H 0.562 in
• Dimension J 1.375 in
• Dimension N 0.312 in
• Max. Angular Misalignment 13 Degrees
• Static Radial Load 1,210 lb

Manufacturer Details

• Manufacturer: QA1
• Condensed Mfg Number: NFR3
• MPN: NFR3

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483308055
• GDS Category Name: Spherical Rod Ends
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171508
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Rod end bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
