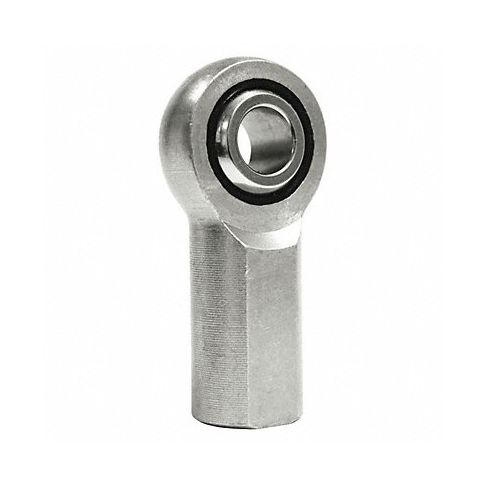

Female Rod End RH 3/8 in Bore 3/8 -24 MPN:NFR6
Female rod ends with a right-hand thread and 3/8 bore are widely used in various applications that require smooth pivotal movement or angular adjustments. Typical users include agricultural equipment, construction machinery, automotive systems, aerospace structures, and manufacturing lines. In power transmission systems, these rod ends provide strong support while minimizing friction, enabling efficient transfer of force and reducing wear and tear on components. Their spherical shape allows for greater alignment tolerances, ensuring smooth operation, while stainless steel construction provides durability and resistance to corrosion in harsh environments. Overall, female rod ends play a critical role in power transmission systems by providing reliable connections between rotating and moving parts, enhancing efficiency, and reducing maintenance costs.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.937 in
- Dimension J 2.125 in
- Dimension N 0.5 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 4,100 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFR6
- MPN: NFR6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
