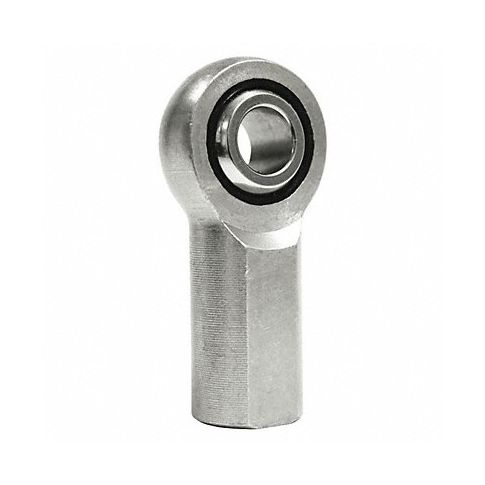

Female Rod End RH 1/2 in Bore 1/2 -20 MPN:NFR8
Female Rod End RH 1/2 in Bore 1/2 -20
Secure's premium grade spherical female rod end RH 1/2 in bore size, and an 1/2 -20 threads is perfect addendum assemblages machinery applications requires high precision quality professional demand durability assemblages versatile, rod end bearing spherical design guarantees smooth rotation and axial movement provide durable bearings suitable ideal addendum manufacturing automotive industry, machinery agricultural equipment transportation ensures compatibility precision.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 1/2"-20
- Inside Dia. 0.500/0.502 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/2"-20
- Dimension AA 0.500/0.502 in
- Dimension E 1.312 in
- Dimension G 2.125 in
- Dimension H 1.187 in
- Dimension J 2.781 in
- Dimension N 0.625 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 6,430 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFR8
- MPN: NFR8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
Category: Bearings
