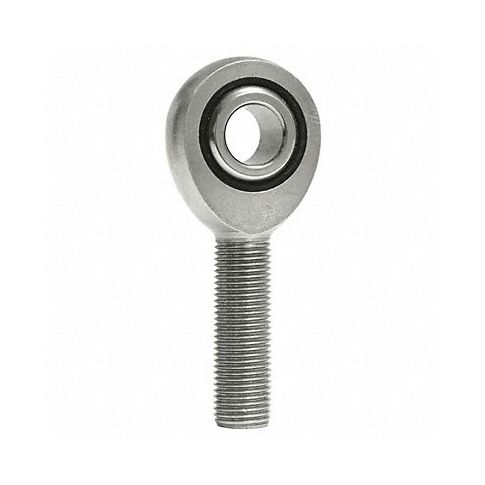

Male Rod End LH 1/4 in Bore 1/4 -28 MPN:NML4
This 1/4 inch bore male rod end features a left-hand threaded design, with the threads having a length of 3/4 inch and an outside diameter of 1/2 inch. The hex drive on this product allows for easy tightening and loosening by hand or using tools. This high-strength steel material ensures durability, making it perfect for use as suspension components or mounts when fabricating custom vehicles. Its stainless-steel insert offers excellent resistance against corrosion, while reducing wear under load ideal for applications in harsh environments where other materials would fail quickly. This rod end provides precise positioning adjustments thanks to its precision fit and smooth operation, making it an ideal choice for use within multiple industries such as construction, agriculture or transportation systems requiring secure connections between moving parts.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/4"-28
- Inside Dia. 0.250/0.252 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension AA 0.250/0.252 in
- Dimension E 0.75 in
- Dimension G 1.562 in
- Dimension H 1.0 in
- Dimension J 1.937 in
- Dimension N 0.375 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 2,470 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML4
- MPN: NML4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
