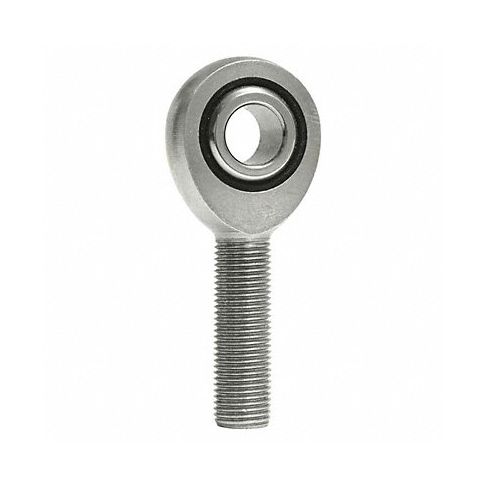

Male Rod End RH 3/8 in Bore 3/8 -24 MPN:NMR6
Male Rod End RH 3/8 in Bore 3/8 -24
The QA1 Male Rod End RH 3/8 in Bore 3/8 -24 is a versatile industrial component designed for pivoting and compensating for misalignment in housings. Made of precision-ground, chrome-plated hardened 52100 steel spherical ball, this durable and accurate product features a 1045 carbon steel body and nylon/PTFE compound molded race. Its self-lubricating design makes it ideal for low to moderate load applications where parts lubrication is not desirable. With its ability to handle a range of industrial applications, the QA1 Male Rod End RH 3/8 in Bore 3/8 -24 offers an excellent solution for various pivoting needs and compensating for misalignment issues in housing assemblies.
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball for accurate and durable movement
- Nylon/PTFE compound molded race for self-lubricating properties
- Compatibility with a range of industrial applications and pivoting needs
Top product applications:
- Compensating for misalignment in industrial housings
- Pivoting in low to moderate load applications where parts lubrication is not desirable
- Allowing accurate and durable movement in various industrial settings
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Dimension N 0.5 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 4,100 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NMR6
- MPN: NMR6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
