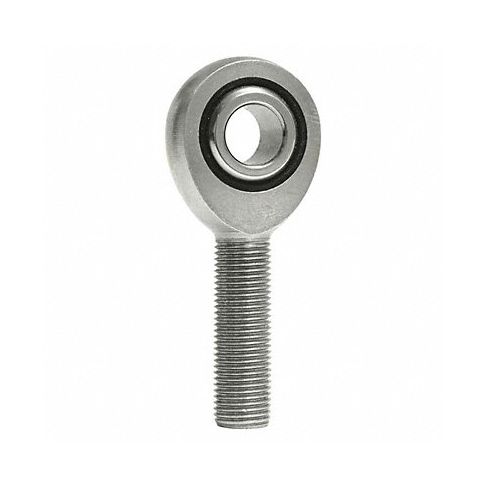

Male Rod End LH 3/8 in Bore 3/8 -24 MPN:NML6
Male Rod End LH 3/8 in Bore 3/8 -24
The Male rod end is designed with a left hand threaded 3/8 bore x 3/8-24 female thread providing easy assembly and disassembly to support mechanical load transfer, suitable for industrial automation or robotics application in power transmission sectors by reducing friction ensuring efficient performance and long life of machinery parts while preventing wear out thus promoting quality assurance.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Dimension N 0.5 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 4,210 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML6
- MPN: NML6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:43am UTC
