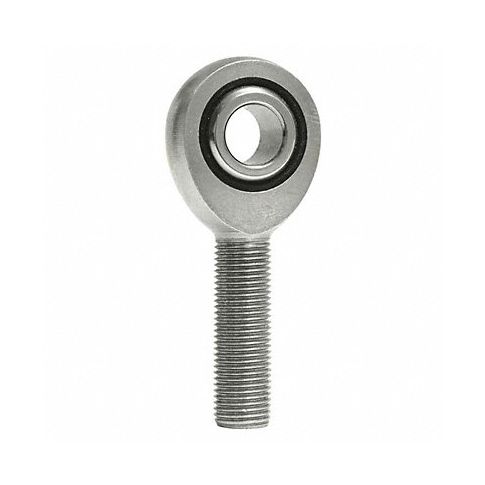

Male Rod End RH 7/16 in Bore 7/16 -20 MPN:NMR7

This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, chrome-plated hardened 52100 steel spherical ball, 1045 carbon steel body, and nylon/PTFE compound molded race. The self-lubricating design helps make it ideal for low to moderate load applications where parts lubrication is not desirable. Note: Not for automotive or aircraft use.

Technical Specifications

• Item Nylon/PTFE Race Rod End
• Type Male Plain
• Ball 52100 Steel Spherical
• Thread Right Hand
• Thread Size 7/16"-20
• Inside Dia. 0.4375/0.4395 in
• Bearings 52100 Steel Spherical Ball
• Housing Carbon Steel
• Construction Follows SAE Specification J1120
• Dimension A 7/16"-20
• Dimension AA 0.4375/0.4395 in
• Dimension E 1.125 in
• Dimension G 2.125 in
• Dimension H 1.375 in
• Dimension J 2.688 in
• Dimension N 0.562 in
• Max. Angular Misalignment 14 Degrees
• Static Radial Load 5,350 lb

Manufacturer Details

• Manufacturer: QA1
• Condensed Mfg Number: NMR7
• MPN: NMR7

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483308055
• GDS Category Name: Spherical Rod Ends
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171508
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Rod end bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
