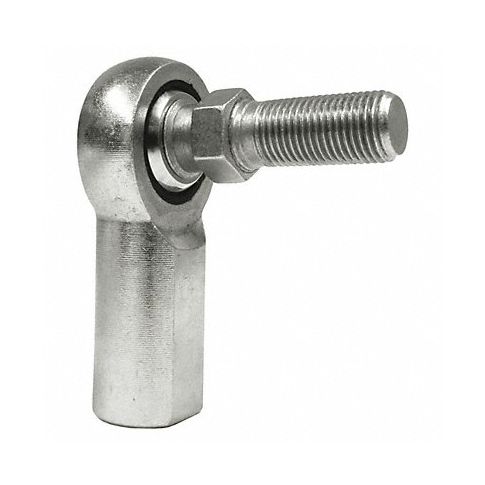

Female Rod End LH 1/4 in Bore 1/4 -28 MPN:NFL4S
Female Rod End LH 1/4 in Bore 1/4 -28
Female Rod End LH 1/4 in Bore 1/4 -28 is a female rod end bearing that's ideal for use in various automotive, machinery, and aerospace applications. It has a right-hand thread with a 1/4 inch bore diameter and is available in stainless steel or alloy steel, ensuring long-lasting durability under extreme conditions. The rod end bearing features an adjustable nut that helps in adjusting its position without changing the overall assembly, making it easy to maintain and replace when needed. It is commonly used for attaching pistons to rods or for connecting mechanical components like control arms and tie rod ends on suspension systems where precision alignment is required.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/4"-28
- Stud Length 0.562 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/4"-28
- Dimension B 0.469 in
- Dimension C 0.562 in
- Dimension E 0.75 in
- Dimension G 1.312 in
- Dimension H 0.75 in
- Dimension J 1.687 in
- Max. Angular Misalignment 16 Degrees
- Static Radial Load 2,470 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFL4S
- MPN: NFL4S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
Category: Bearings
