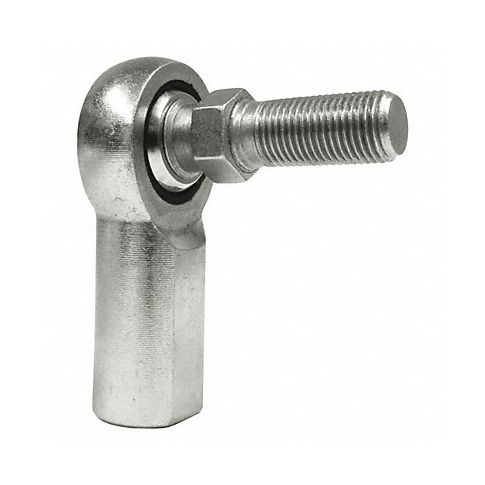

Female Rod End LH 3/8 in Bore 3/8 -24 MPN:NFL6S
Female Rod End LH 3/8 in Bore 3/8 -24
The Female Rod End LH 3/8 in Bore 3/8 -24 from QA1 is designed for industrial applications requiring pivoting to compensate for misalignment. Made from 52100 steel ball bearing construction and carbon steel housing, this rod end provides durability in demanding environments. Ideal for use in power transmission systems, the Female Rod End LH 3/8 offers excellent wear resistance, high-precision rotation, and the ability to withstand harsh conditions. Its versatile design makes it suitable for a wide range of applications, including robotics, automotive, aerospace, and agricultural machinery.
Top product features:
- 52100 steel ball bearing construction provides high-precision rotation and durability
- Carbon steel housing increases wear resistance for demanding applications
- Pivoting ability compensates for misalignment in industrial applications
Top product applications:
- Pivoting in housing compensates for misalignment in industrial machinery
- Suitable for power transmission systems requiring pivoting or swivel motion
- Ideal for robotics and automation where precision is critical
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.937 in
- Dimension J 2.125 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 4,100 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NFL6S
- MPN: NFL6S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 6, 2024 5:30am UTC
Category: Bearings
