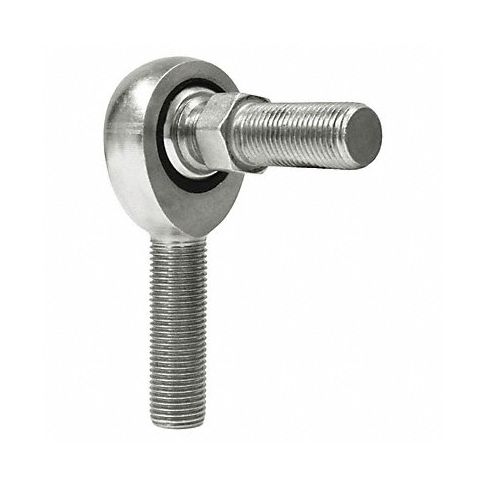

Male Rod End LH 3/16 in Bore #10-32 MPN:NML3S
Male Rod End LH 3/16 in Bore #10-32
The Male Rod End LH 3/16 is an essential component for industrial applications where secure and durable connections are required. Constructed from metal, this part features a left-handed thread of 3/16 and a #10-32 standard screw size, making it suitable for connecting to rod ends. With its sturdy build, the Male Rod End LH 3/16 can withstand harsh conditions without bending or snapping under pressure. This part is ideal for usage in industries such as automotive repair shops and construction sites, where reliable connections are crucial to prevent accidents or costly downtime. Its versatile design makes it suitable for a range of power tools and accessories that require tight-fitting and sturdy connections.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.25 in
- Dimension H 0.75 in
- Dimension J 1.563 in
- Max. Angular Misalignment 13 Degrees
- Static Radial Load 1,210 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML3S
- MPN: NML3S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
