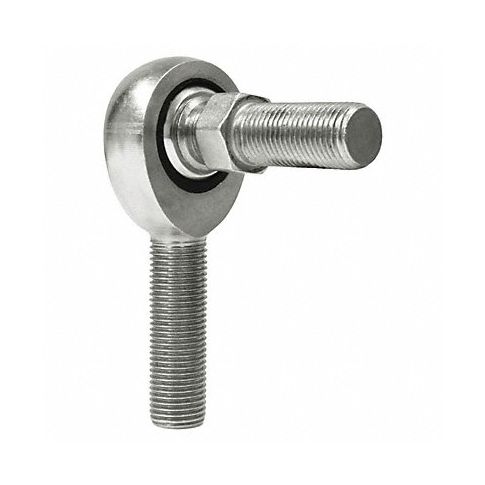

Male Rod End LH 3/8 in Bore 3/8 -24 MPN:NML6S
Male Rod End LH 3/8 in Bore 3/8 -24
The male rod end finds its application in industrial sectors such as automotive, aerospace or construction where it delivers exceptional precision while maintaining accuracy during operation ensuring customer satisfaction by meeting regulatory compliance. The versatile component offers quality performance, longevity, and cost savings through reduction of maintenance or replacement over time thereby fulfilling power transmission or bearing needs.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 4,210 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML6S
- MPN: NML6S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:46am UTC
