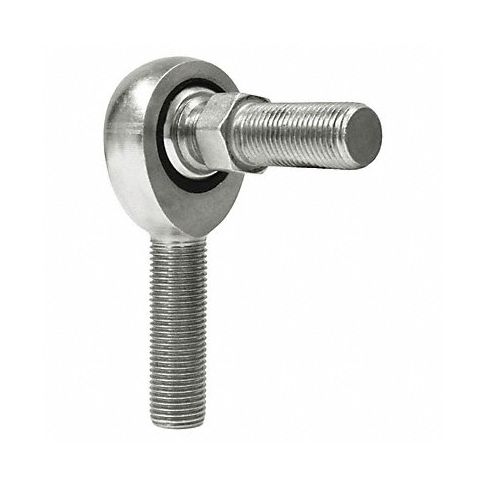

Male Rod End LH 1/2 in Bore 1/2 -20 MPN:NML8S
Male Rod End LH 1/2 in Bore 1/2 -20 is an ideal bearing component designed to offer superior performance and reliability for various bearing applications. Its left-hand thread design allows easy installation while the unlimited swivel feature offers smooth movement and adjustment capability. The steel construction ensures durable and long-lasting performance even under extreme conditions and heavy loads. With a 1/2 inch bore size, it can fit standard 1/2 inch rods making it an excellent choice for various industries such as automotive, manufacturing, aerospace, and transportation. It's suitable for precision assemblies, suspensions, and linkages requiring strong and reliable rod ends to securely fasten rods and connect assemblies with confidence. Male Rod End LH 1/2 in Bore 1/2 -20 is the perfect choice for professional mechanics, engineers, technicians, and hobbyists who need a dependable bearing component to enhance their application's performance and durability.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/2"-20
- Stud Length 1.125 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/2"-20
- Dimension B 0.875 in
- Dimension C 1.125 in
- Dimension E 1.312 in
- Dimension G 2.438 in
- Dimension H 1.5 in
- Dimension J 3.094 in
- Max. Angular Misalignment 12 Degrees
- Static Radial Load 6,430 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML8S
- MPN: NML8S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
