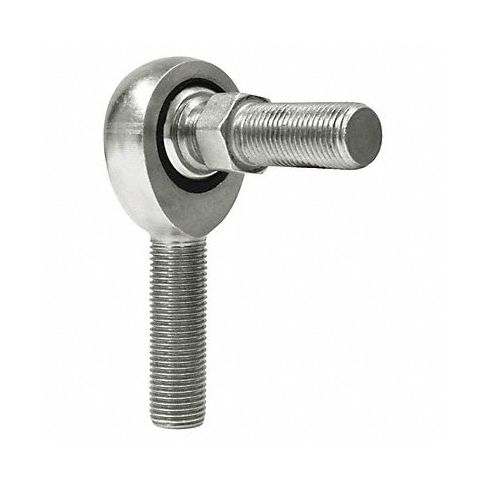

Male Rod End RH 3/4 in Bore 3/4 -16 MPN:NMR12S
The male rod end is an essential part used to connect a clevis pin to a rod or other assembly in dynamic loading applications, offering high-strength solutions for heavy-duty environments due to their robust construction from alloy steel with zinc plating protecting them against various conditions. Characterized by a 3/4 diameter size and 3/4-inch threading style compatible with diverse hardware setups seeking customization, this item is suitable for usage across industries like agriculture, construction, manufacturing, where accurate connections matter greatly while performing operations such as attaching clevises securely. Professionals using bearings within their everyday work will appreciate its high-performance characteristics that result in better performance and stability even under challenging situations by assuring reliable attachments when securing components properly.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size 3/4"-16
- Stud Length 1.812 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/4"-16
- Dimension B 1.188 in
- Dimension C 1.812 in
- Dimension E 1.75 in
- Dimension G 2.875 in
- Dimension H 1.75 in
- Dimension J 3.75 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 10,900 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NMR12S
- MPN: NMR12S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
