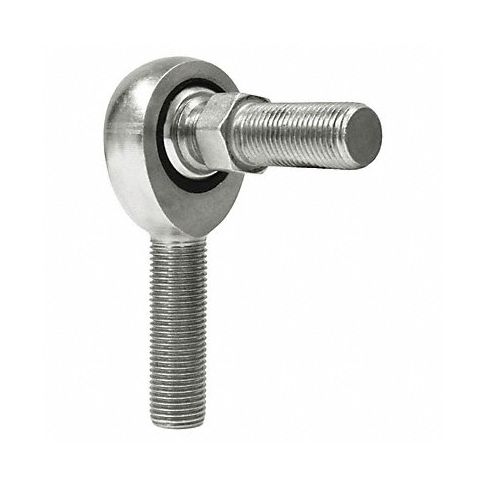

Male Rod End LH 3/4 in Bore 3/4 -16 MPN:NML12S
The Male Rod end with a left-hand thread, featuring a 3/4 bore size and 3 length, is made from chrome-moly steel alloy which offers high strength, and durability to the product. The spherical design of the rod end provides unrestricted movement on all planes helping to eliminate binding resulting from angular misalignment making it suitable in applications where there are multiple rotational movements. The male rod end also has a low friction motion offering smooth operations thus making it crucial in power transmission applications such as automotive, construction machinery, and robotics, among others. It is made with precision and provides an interchangeable option in spherical rod ends helping users avoid any compatibility problems with their equipment thus adding value to their purchase of the product.
Technical Specifications
- Item Nylon/PTFE Race Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/4"-16
- Stud Length 1.812 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/4"-16
- Dimension B 1.188 in
- Dimension C 1.812 in
- Dimension E 1.75 in
- Dimension G 2.875 in
- Dimension H 1.75 in
- Dimension J 3.75 in
- Max. Angular Misalignment 14 Degrees
- Static Radial Load 10,900 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: NML12S
- MPN: NML12S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
