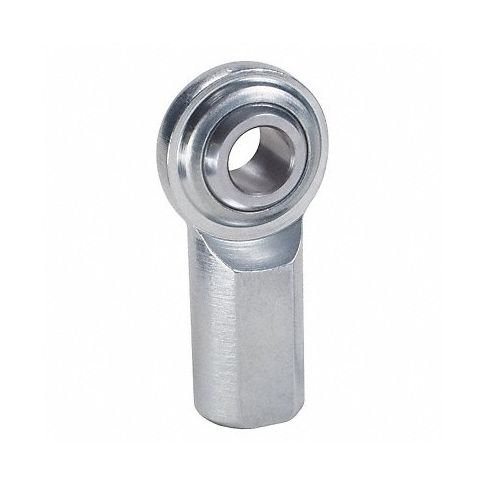

Female Rod End LH 7/16 in Bore 7/16 -20 MPN:CFL7
The Female Rod End LH 7/16 in Bore 7/16 -20 from QA1 is a high-quality steel spherical rod end designed for pivoting in industrial applications. Made of precision-ground, chrome-plated hardened 52100 steel spherical ball bearing and durable 1045 carbon steel body, this rod end ensures longevity and optimal performance in harsh environments. Its design compensates for misalignment and promotes ease of movement. Applications for the Female Rod End LH include automotive and aerospace industries where precision pivoting is critical for alignment and functionality. This product's robust construction and QA1 brand reputation make it an excellent choice for professional engineers, designers, and users in various sectors requiring industrial-grade hardware components.
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball bearing for durability and precision.
- 1045 carbon steel body for added strength and long life in harsh environments.
- Design allows for pivoting to compensate for misalignment, ensuring smooth movement and optimal functionality.
Top product applications:
- Industrial automation and robotics for precise movement control in assembly lines and other machinery.
- Aerospace engineering in adjustable wing fittings and landing gears for smooth operation and alignment.
- Agricultural equipment and implement in planter boxes, irrigation systems, or cultivator attachments for proper planting and harvesting operations.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 7/16"-20
- Inside Dia. 0.4375/0.4395 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 7/16"-20
- Dimension AA 0.4375/0.4395 in
- Dimension E 1.125 in
- Dimension G 1.812 in
- Dimension H 0.937 in
- Dimension J 2.375 in
- Dimension N 0.562 in
- Max. Angular Misalignment 21 Degrees
- Static Radial Load 7,897 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL7
- MPN: CFL7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
