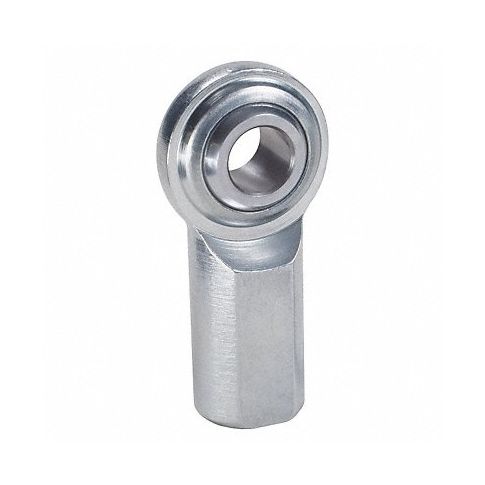

Female Rod End LH 1/2 in Bore 1/2 -20 MPN:CFL8
Female Rod End LH 1/2 in Bore 1/2 -20
Accupro's female rod end is an essential component for creating rigid connections or mounting points with durable and leak-proof performance. Made from high-quality steel, it boasts a 1/2-inch size allowing compatibility with various projects or systems. The 1/2-20 threads offer quick assembly while the lightweight design provides easy handling and mobility for industrial, automotive or mechanical applications. Perfect for hose fittings, hydraulic systems, and machinery repair, this product is a versatile solution for professional technicians or engineers seeking reliability in their projects.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Female Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 1/2"-20
- Inside Dia. 0.500/0.502 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 1/2"-20
- Dimension AA 0.500/0.502 in
- Dimension E 1.312 in
- Dimension G 2.125 in
- Dimension H 1.062 in
- Dimension J 2.781 in
- Dimension N 0.625 in
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 10,046 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL8
- MPN: CFL8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
