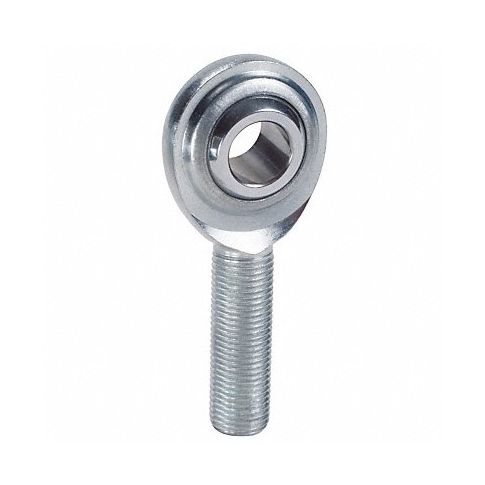

Male Rod End LH 3/8 in Bore 3/8 -24 MPN:CML6
Male Rod End LH 3/8 in Bore 3/8 -24
The male rod end delivers cost savings by reducing friction during motion while supporting bearings or connectors for easy assembly and disassembly in industrial applications such as robotics, automotive, construction or aerospace sectors. It excels in preventing accidents or wear out while promoting long-lasting performance, thus meeting customers' requirements of durability, reliability and longevity.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Inside Dia. 0.375/0.377 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension AA 0.375/0.377 in
- Dimension E 1.0 in
- Dimension G 1.938 in
- Dimension H 1.25 in
- Dimension J 2.438 in
- Dimension N 0.5 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 6,323 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CML6
- MPN: CML6
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:34am UTC
Category: Bearings
