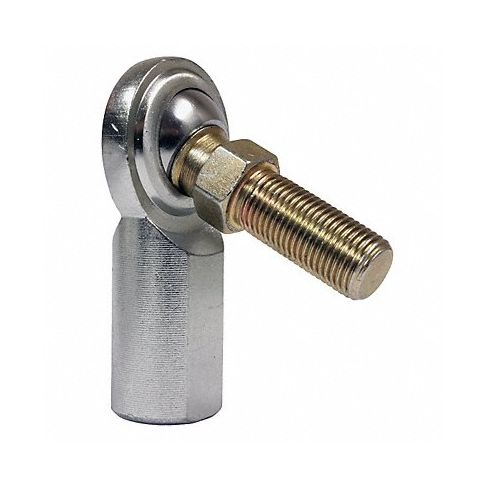

Female Rod End RH 3/16 in Bore #10-32 MPN:CFR3S
Female Rod End RH 3/16 in Bore #10-32
Introducing our new Female Rod End RH 3/16 in Bore #10-32 from QA1 - designed for smooth, reliable pivoting in industrial applications! Made with high-quality 52100 steel ball bearings and durable carbon steel construction, this product is built to last. The female studded design allows easy mounting and a secure connection, while the right-hand thread ensures compatibility with your existing hardware. With a #10-32 thread size, it's perfect for use in machinery, robotics, or any application where precision and reliability are essential. Don't settle for inferior parts - upgrade to QA1 and experience the difference for yourself!
Top product features:
- Right hand thread for easy installation and compatibility with existing hardware
- Made from durable carbon steel housing to provide longevity in demanding applications
- 52100 steel ball bearings for smooth, reliable pivoting
Top product applications:
- Robotics: The smooth pivoting feature allows for accurate and precise movement in robotic arms and joints
- Automation equipment: Used as a pivot point or coupling component in machinery and conveyor systems
- Agricultural machinery: Ideal for use in attachment points on farming equipment such as sprayers or fertilizer spreaders
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.062 in
- Dimension H 0.5 in
- Dimension J 1.375 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 2,079 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFR3S
- MPN: CFR3S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
