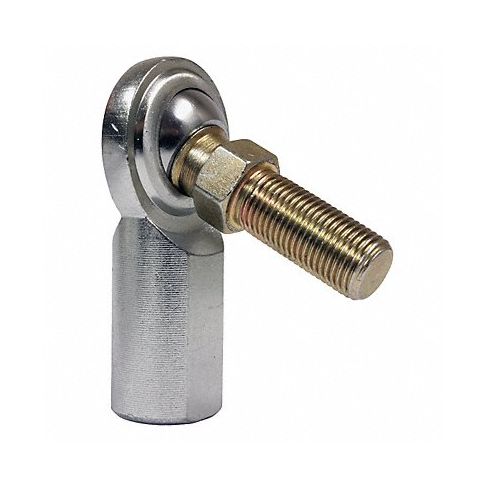

Female Rod End RH 5/16 in Bore 5/16 -24 MPN:CFR5S

This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.

Technical Specifications

• Item Rod End
• Type Female Studded
• Ball 52100 Steel Spherical
• Thread Right Hand
• Thread Size 5/16"-24
• Stud Length 0.687 in
• Bearings 52100 Steel Spherical Ball
• Housing Carbon Steel
• Construction Follows SAE Specification J1120
• Dimension A 5/16"-24
• Dimension B 0.532 in
• Dimension C 0.687 in
• Dimension E 0.875 in
• Dimension G 1.375 in
• Dimension H 0.687 in
• Dimension J 1.813 in
• Max. Angular Misalignment 22 Degrees
• Static Radial Load 5,110 lb

Manufacturer Details

• Manufacturer: QA1
• Condensed Mfg Number: CFR5S
• MPN: CFR5S

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8483308055
• GDS Category Name: Spherical Rod Ends
• GDS Family Name: Bearings
• GDS Segment Name: Power Transmission
• UNSPSC: 31171508
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Bearings
• UNSPSC Commodity ID: 08
• UNSPSC Commodity Name: Rod end bearings
• UNSPSC Family ID: 17
• UNSPSC Family Name: Bearings and bushings and wheels and gears
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
