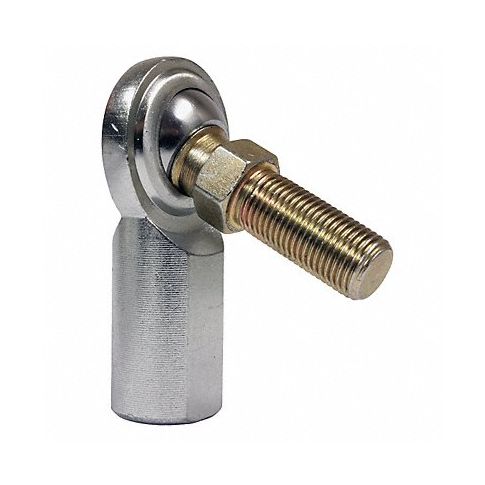

Female Rod End LH 3/8 in Bore 3/8 -24 MPN:CFL6S
Introducing the QA1 Female Rod End LH 3/8 in Bore 3/8 -24, the perfect solution for industrial applications requiring precision and durability. This steel spherical rod end allows pivoting in the housing to compensate for misalignment, making it ideal for demanding environments. The 52100 steel ball bearing construction ensures high performance and longevity, while the carbon steel housing provides added strength and durability. The Female Studded design makes it easy to connect with other components, and the Left Hand thread makes it suitable for a variety of applications. Use this product in robotics and automation systems, or anywhere else where precision and reliability are essential. Upgrade your industrial equipment with the QA1 Female Rod End LH 3/8 in Bore 3/8 -24 and experience the difference for yourself.
Top product features:
- Pivoting ability to compensate for misalignment
- Durable carbon steel housing
- 52100 steel ball bearing construction for high performance
Top product applications:
- Robotics and automation systems
- Industrial machinery and equipment
- Heavy duty vehicles and construction equipment
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 3/8"-24
- Stud Length 0.906 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 3/8"-24
- Dimension B 0.656 in
- Dimension C 0.906 in
- Dimension E 1.0 in
- Dimension G 1.625 in
- Dimension H 0.812 in
- Dimension J 2.125 in
- Max. Angular Misalignment 22 Degrees
- Static Radial Load 6,323 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CFL6S
- MPN: CFL6S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 13, 2023 5:34pm UTC Category: Bearings
