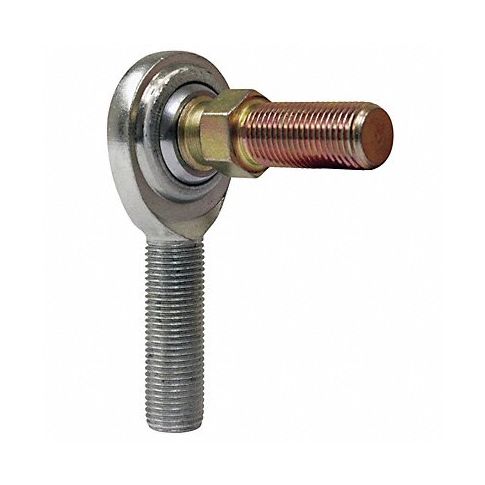

Male Rod End LH 3/16 in Bore #10-32 MPN:CML3S
Male Rod End LH 3/16 in Bore #10-32
The Male Rod End LH 3/16 is a versatile component used across various industries for creating sturdy connections. Constructed from metal with a left-handed thread of 3/16 and a #10-32 standard screw size, it connects easily to rod ends. Its key specifications include its metallic construction that makes it durable in harsh environments without bending or snapping under pressure. This part is widely used in the automotive repair shops and construction sites among other industries where secure connections are essential to prevent accidents, downtime or costly repairs. Its sturdiness and adaptability make it a crucial element of bearings and power tools with demanding applications that require tight and sturdy connections.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size #10-32
- Stud Length 0.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A #10-32 in
- Dimension B 0.5 in
- Dimension C 0.5 in
- Dimension E 0.625 in
- Dimension G 1.25 in
- Dimension H 0.75 in
- Dimension J 1.563 in
- Max. Angular Misalignment 20 Degrees
- Static Radial Load 1,558 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CML3S
- MPN: CML3S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
