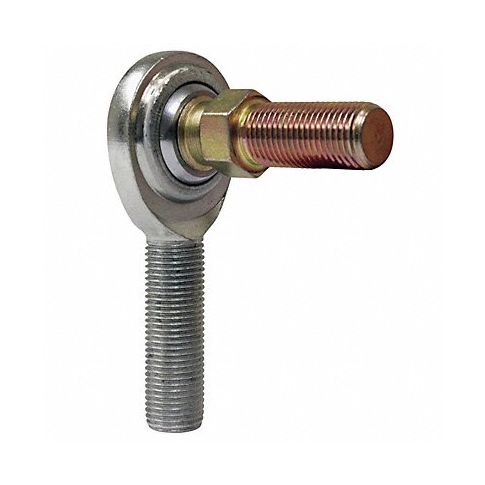

Male Rod End LH 5/8 in Bore 5/8 -18 MPN:CML10S
This male rod end is an essential component for constructing precision movement control systems that require high strength and durability. The M4 threading on its hexagon socket head allows convenient connections to various fittings, making it suitable for applications in the automotive, construction, or aerospace industries where strong attachment points are crucial. Its robust design features high-strength steel material capable of withstanding heavy load and vibration encountered in heavy machinery operation. The spherical shape at the end provides smooth movement control while minimizing wear and tear, making it ideal for steering linkage or suspension systems on trucks and excavators. Its left-hand thread orientation allows easy installation and removal of connecting hardware to save time during maintenance work. This male rod end's versatility, strength, and reliability make it a valuable asset for professionals working on industrial automation projects requiring precise movement control at all times.
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size 5/8"-18
- Stud Length 1.5 in
- Bearings 52100 Steel Spherical Ball
- Housing Carbon Steel
- Construction Follows SAE Specification J1120
- Dimension A 5/8"-18
- Dimension B 1.0 in
- Dimension C 1.5 in
- Dimension E 1.5 in
- Dimension G 2.625 in
- Dimension H 1.625 in
- Dimension J 3.375 in
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 11,385 lb
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: CML10S
- MPN: CML10S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
