Sspnd Elct Wl/Ceil Heatr 16 H 277V 1Ph MPN:MUH0371
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-20ca07

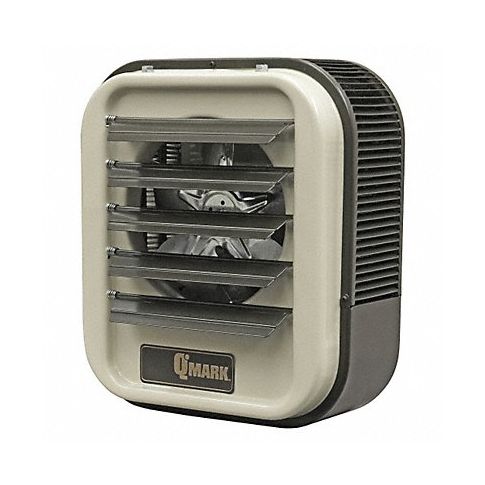

Sspnd Elct Wl/Ceil Heatr 16 H 277V 1Ph
Introducing Qmark's Suspended Electric Wall and Ceiling Unit Heater, the perfect solution for industrial and commercial spaces requiring efficient heating in large or exposed areas. This versatile unit suspends from a bracket or threaded rod, saving floorspace while providing primary or supplementary heating. It utilizes a forced air system with a heating element and fan to deliver 350 cfm of warm air for uniform heat distribution. With its durable construction and efficient design, Qmark's Suspended Electric Wall and Ceiling Unit Heater is ideal for use in warehouses, factories, stock rooms, or any facility requiring targeted heating solutions. Choose from various sizes and styles to find the perfect fit for your space and heating needs.
Top product features:
- Suspends from bracket or threaded rod
- Forced air system for uniform heat distribution
- Versatile heating solutions for industrial and commercial spaces
Top product applications:
- Industrial facilities that require supplemental heating
- Large or exposed areas in commercial spaces that need primary heating
- Warehouses and stock rooms requiring targeted heat distribution for improved workflow
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 16 in
- Overall Width 14 in
- Overall Depth 7 1/2 in
- Air Flow 350 cfm
- Air Temp. Rise 27 Degrees F
- Voltage 277V AC
- Phase 1
- Wattage Output 3kW
- Heating Method Fan Forced
- Heating Capacity 10,239 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 12 ft
- Frequency 50/60 Hz
- Amperage 11A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 277V AC
- Housing Color Beige
- Housing Finish Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 18 ft
- Vertical Mounting H 9 ft
- Requires MMB10, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH0371
- MPN: MUH0371
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101819
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Space heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B006TI8M2U
Product info last updated on November 3, 2024 5:30am UTC Category: Electric Heaters and Accessories
