Sspnd Elct Wl/Ceil Heatr 21-3/4 H 600V MPN:MUH076
Free Shipping
In Stock

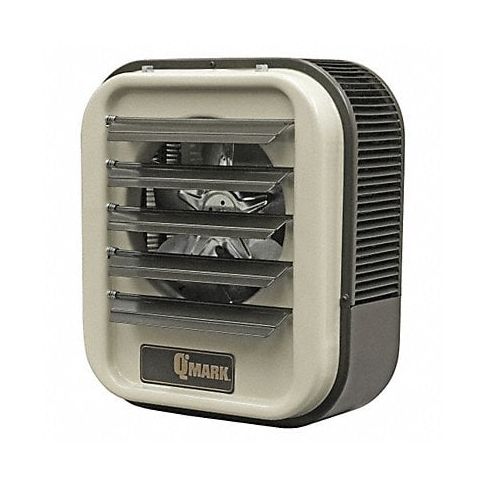

Introducing Qmark's Suspended Electric Wall & Ceiling Unit Heater, designed to provide efficient heating solutions for large exposed areas such as factories, warehouses, and stockrooms. This versatile product is ideal for use in both horizontal and downflow applications, saving floorspace while delivering powerful heating capabilities. With a forced air system that uses a heating element and a fan to heat the air, this product offers a range of benefits such as low energy consumption, quiet operation, and quick installation. Available with an overall height of 21 3/4 inches, width of 19 inches, and depth of 7 1/2 inches, this heater has an impressive air flow rate of 650 cfm. Designed for primary or supplementary heating, this unit can be easily integrated into any existing HVAC and refrigeration system. Upgrade your facility's heating capabilities with Qmark's Suspended Electric Wall & Ceiling Unit Heater.
Top product features:
- Suspension option for horizontal and downflow applications
- Primary or supplementary heating capabilities
- Low energy consumption for cost savings
Top product applications:
- Warehouses and factories needing additional heating for cold days
- Manufacturing plants requiring consistent warmth to maintain employee comfort
- Storage units seeking supplemental heating in areas exposed to cold weather
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 7 1/2 in
- Air Flow 650 cfm
- Air Temp. Rise 37 Degrees F
- Voltage 600V AC
- Phase 3
- Wattage Output 7.5kW
- Heating Method Fan Forced
- Heating Capacity 25,598 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 18 ft
- Frequency 50/60 Hz
- Amperage 7.3A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 26 ft
- Vertical Mounting H 14 ft
- Requires MMB10, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH076
- MPN: MUH076
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101819
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 19
- UNSPSC Commodity Name: Space heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 19, 2024 5:30am UTC Category: Electric Heaters and Accessories
