Sspnd Elct Wl/Ceil Heatr 30 H 208/240V MPN:MUH252
Free Shipping
In Stock

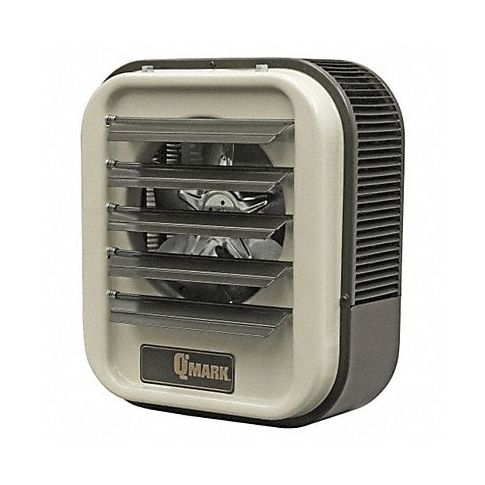

Introducing the Sspnd Elct Wl/Ceil Heatr 30 H 208/240V from Qmark, a powerful electric wall and ceiling unit heater designed for large industrial spaces, warehouses, or stock rooms. Its suspended design allows it to hang from a bracket or threaded rod, freeing up valuable floor space while still providing efficient heating in downflow or horizontal applications. With a forced air system that uses a heating element and fan, this unit can provide primary or supplementary heating when needed. Its compact size belies its powerful output of 1800/2100 CFM, making it the ideal choice for any commercial or industrial setting where warmth and efficiency are required. Use the Sspnd Elct Wl/Ceil Heatr 30 H 208/240V from Qmark to keep your space comfortable year-round while saving valuable floorspace.
Top product features:
- Suspended Design This feature allows for easier installation and saves floorspace in large or exposed areas.
- Forced Air System The forced air system provides efficient heating in both downflow and horizontal applications, making it suitable for a wide range of settings.
- Compact Size Despite its powerful output, this unit is compact, taking up less space than traditional heaters while still providing plenty of warmth.
Top product applications:
- Factories The suspended design and powerful output make it ideal for heating large factory floors.
- Warehouses Its efficient forced air system provides warmth in open spaces, making it perfect for storage areas or aisles.
- Stock rooms It occupies less space while still providing adequate heat, which is essential in smaller rooms with limited square footage.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 30 in
- Overall Width 26 5/8 in
- Overall Depth 11 3/4 in
- Air Flow 1800/2100 cfm
- Air Temp. Rise 38 Degrees F/44 Degrees F
- Voltage 208/240V AC
- Phase 3
- Wattage Output 18.7kW/25kW
- Heating Method Fan Forced
- Heating Capacity 63,823/85,325 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 50 ft
- Frequency 50/60 Hz
- Amperage 52A/62A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 63 ft
- Vertical Mounting H 23 ft
- Requires MMB30, UHMT2
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH252
- MPN: MUH252
