Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V MPN:MUH104
Free Shipping
In Stock

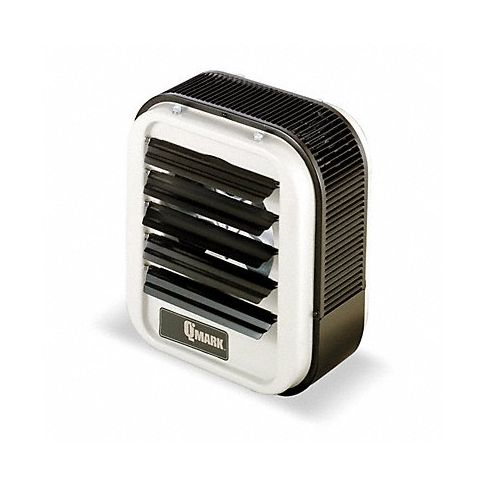

The Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V from Qmark is a high-performance suspended electric wall and ceiling unit heater designed for large industrial spaces such as factories, warehouses, and stock rooms. Its forced air system efficiently heats the air using a heating element and a fan, providing primary or supplementary heating in exposed areas. With an overall height of 21 3/4 inches and a width of 19 inches, this unit saves floor space while delivering powerful heating capabilities with an air flow of 650 cfm. Its sturdy construction ensures durability, while its easy installation on a bracket or threaded rod makes it perfect for downflow or horizontal applications. Whether used as primary or supplemental heating, the Sspnd Elct Wl/Ceil Heatr from Qmark is an ideal solution for large industrial spaces looking to save floor space and optimize energy consumption while maintaining warmth.
Top product features:
- Suspended Design Saves floor space and allows for versatile installation options in large industrial settings
- Forced Air System Efficiently heats the air using a heating element and a fan, providing powerful heating capabilities with an air flow of 650 cfm
- Large Heating Area Perfect for primary or supplementary heating in large or exposed areas such as factories, warehouses, and stock rooms
Top product applications:
- Warehouses and Distribution Centers Optimal for providing primary heating in large spaces where floor space is limited
- Manufacturing Facilities Perfect supplementary heating solution in exposed areas such as assembly lines or machinery workstations
- Agricultural Storage Provides secondary heat in grain storage facilities or cattle barns to prevent moisture accumulation and spoiling
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 7 1/2 in
- Air Flow 650 cfm
- Air Temp. Rise 49 Degrees F
- Voltage 480V AC
- Phase 3
- Wattage Output 10kW
- Heating Method Fan Forced
- Heating Capacity 34,120 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 18 ft
- Frequency 60 Hz
- Amperage 12A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Polyester Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 14 ft
- Vertical Mounting H 14 ft
- Requires MMB10, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH104
- MPN: MUH104
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 19, 2024 5:30am UTC Category: Electric Heaters and Accessories
