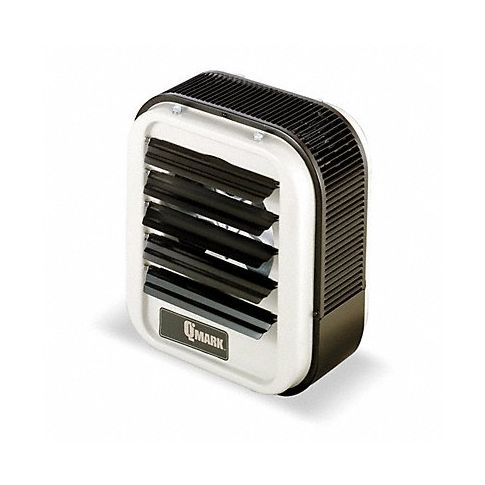

Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V MPN:MUH154
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-cxg-25d241
Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V
Introducing the Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V - the ideal heating solution for your large or exposed spaces. Suspended electric wall and ceiling unit heaters save limited floorspace while providing primary or supplementary heating in factories, warehouses, and stock rooms. With a forced air system that heats the air using a heating element and a fan, this unit is energy-efficient, with a high COP rating of 9.3 CFM/W for HVAC and refrigeration applications. The 21 3/4 inch height ensures it fits most spaces while the 19-inch width and 12 3/4-inch depth make it easy to install. Increase productivity and maintain a comfortable temperature with this cost-effective heating solution.
Top product features:
- Energy-efficient forced air system with high COP rating
- Versatile suspension options for downflow or horizontal applications
- Compact design for easy installation in limited spaces
Top product applications:
- Primary heating in large factories
- Supplementary heating in warehouses
- Heating stock rooms in retail stores
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 12 3/4 in
- Air Flow 910 cfm
- Air Temp. Rise 52 Degrees F
- Voltage 480V AC
- Phase 3
- Wattage Output 15kW
- Heating Method Fan Forced
- Heating Capacity 51,180 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 35 ft
- Frequency 60 Hz
- Amperage 18A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Polyester Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 20 ft
- Vertical Mounting H 20 ft
- Requires MMB10, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH154
- MPN: MUH154
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B006TI8PT0
Product info last updated on December 11, 2024 5:30am UTC Category: Electric Heaters and Accessories
