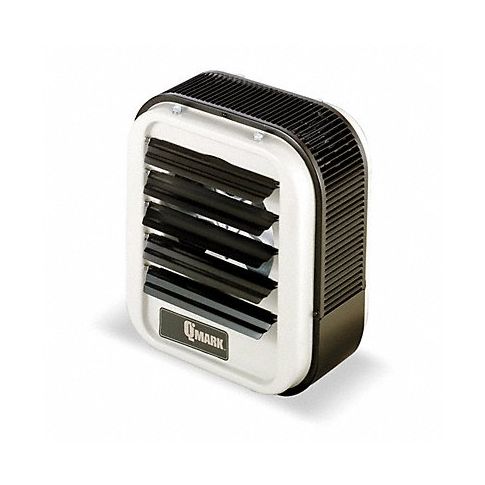

Sspnd Elct Wl/Ceil Heatr 21-3/4 H 208V MPN:MUH158
Free Shipping
In Stock
The Sspnd Elct Wl/Ceil Heatr 21-3/4 H 208V from Qmark is an ideal solution for heating large or exposed areas in factories, warehouses, and stock rooms. Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. The forced air system uses a heating element and a fan to heat the air, making it an energy-efficient choice for your space. With an overall height of 21 3/4 inches, overall width of 19 inches, and overall depth of 12 3/4 inches, this unit is perfect for small or large spaces. Its air flow rate of 910 cfm ensures uniform heating in the area. With its durable construction and powerful performance, this heater is a smart investment for your space.
Top product features:
- Suspended design for versatile installation options.
- Downflow and horizontal application suitable for large areas.
- High air flow rate of 910 cfm for uniform heating.
Top product applications:
- Industrial and commercial settings for heating large spaces such as factories, warehouses, and stock rooms.
- Providing primary or supplementary heating in areas where limited floorspace is available.
- Downflow or horizontal applications to ensure uniform heating and comfortable temperatures in the space.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 12 3/4 in
- Air Flow 910 cfm
- Air Temp. Rise 52 Degrees F
- Voltage 208V AC
- Phase 1 or 3
- Wattage Output 15kW
- Heating Method Fan Forced
- Heating Capacity 51,180 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 35 ft
- Frequency 60 Hz
- Amperage 72A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Polyester Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 20 ft
- Vertical Mounting H 20 ft
- Requires MMB20, UHMT2
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH158
- MPN: MUH158
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 25, 2024 5:30am UTC Category: Electric Heaters and Accessories
