Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V MPN:MUH152
Free Shipping
In Stock

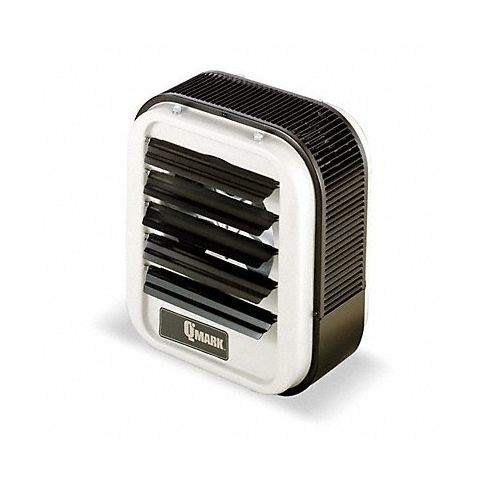

Introducing the Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V from Qmark - perfect for large or exposed areas like factories, warehouses, and stock rooms. With a forced air system that heats the air using a heating element and a fan, this suspended electric wall and ceiling unit heater offers primary or supplementary heating. It saves limited floorspace by suspending from a bracket or threaded rod for use in downflow or horizontal applications. Perfect for providing comfortable warmth in large areas, it comes with an overall height of 21-3/4 inches, width of 19 inches and depth of 12-3/4 inches, allowing easy installation and integration. The Sspnd Elct Wl/Ceil Heatr offers an air flow of 910 cfm, making it ideal for use in industrial settings. Upgrade your heating system with this reliable electric wall and ceiling unit heater today!
Top product features:
- Suspended design for easy installation and space-saving capabilities
- Forced air system for efficient heating
- Versatile use in industrial settings for supplementary or primary heating
Top product applications:
- Primary heating for large open spaces in factories and warehouses
- Supplementary heating in exposed areas such as atriums or lobbies
- Warming up storage or workspaces in industrial settings
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 12 3/4 in
- Air Flow 910 cfm
- Air Temp. Rise 52 Degrees F
- Voltage 208/240V AC
- Phase 3
- Wattage Output 11.2kW/15kW
- Heating Method Fan Forced
- Heating Capacity 38,200/51,200 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 35 ft
- Frequency 60 Hz
- Amperage 31.3A/36.1A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Polyester Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 20 ft
- Vertical Mounting H 20 ft
- Requires MMB20, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH152
- MPN: MUH152
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on December 29, 2024 5:30am UTC Category: Electric Heaters and Accessories
