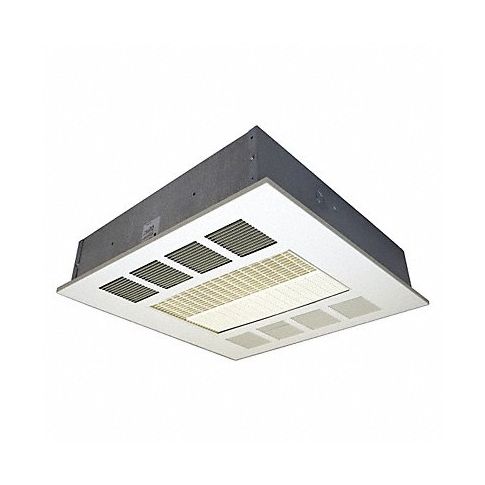

Elec Ceiling Panel Heater 23-3/4 L 277V MPN:CDF557RE

Recessed and drop-in panel electric ceiling heaters can be recess-mounted or installed in 2 ft. x 2 ft. drop ceilings. They can also be mounted in permanent ceiling applications with a required trim ring. They use fan-forced air to provide spot heating in small areas with limited floor and wall space. They require a thermostat to control heat settings.

Technical Specifications

• Item Electric Ceiling Panel Heater
• Overall Length 23 3/4 in
• Overall Width 23 3/4 in
• Overall Depth 7 in
• Overall Height 7 in
• Phase 1
• Voltage 277V AC
• Wattage Output 2500W/3800W/5000W
• Housing Color White
• Heating Method Fan Forced
• Heating Capacity 8500/13,000/17,100 BtuH
• Mounting Type Recessed
• Thermostat Included No
• Air Flow 300 cfm
• Air Temp. Rise 42 Degrees F
• Amperage 24A/18.3A/12A
• Frequency 60 Hz
• Control Type Thermostat
• Heater Mounting Position Vertical Burn
• Housing Finish Powder Coated
• Housing Material Steel
• Mounting Location Ceiling
• Manufacturers Warranty Length 1 yr Limited, 5 yr Elements
• Standards UL Listed, CUL Listed

Manufacturer Details

• Manufacturer: Qmark
• Condensed Mfg Number: CDF557RE
• MPN: CDF557RE

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8516290090
• GDS Category Name: Electric Ceiling Panel Heaters
• GDS Family Name: Electric Heaters and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101821
• UNSPSC Class ID: 18
• UNSPSC Commodity Name: Heating equipment and parts and accessories
• UNSPSC Commodity ID: 21
• UNSPSC Commodity Name: Strip heaters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
