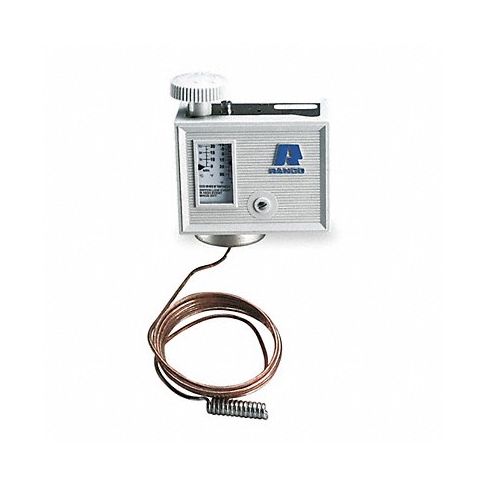

Temperature Control MPN:O10-1408
Free Shipping
In Stock
Introducing the Ranco O10-1408, the ultimate solution for accurate refrigeration and freezer control. Designed to provide precise temperature management between -2 to 38 degrees Fahrenheit, this versatile device is perfect for restaurants, commercial kitchens, grocery stores, or any establishment seeking to preserve food and beverages safely. Featuring an SPST switch type and automatic reset function, the Ranco O10-1408 offers ease of use and convenience while ensuring consistent temperature control. With a medium-temperature setting, this temperature control device is suitable for various applications and can have a positive impact on our community by supporting Service Disabled Veteran-Owned Business partners. Invest in the Ranco O10-1408 today and experience the benefits of precise temperature control!
Top product features:
- Temperature range: -2 to 38 degrees Fahrenheit
- Medium-temperature control setting
- Automatic reset function
Top product applications:
- Food storage in refrigerators and freezers
- Commercial foodservice establishments (restaurants, bars, cafeterias)
- Storage and preservation of perishable goods in warehouses or distribution centers
Technical Specifications
- Item Refrigeration/Freezer Control
- Type Medium Temp.
- Switch Type SPST
- Switch Action Automatic Reset, Close on Rise
- Control Range (F) -2 to 38
- Temp. Differential High (F) 3 to 20
- Temp. Differential Low (F) 6 to 25
- Height (In.) 2 3/4 in
- Width (In.) 3 1/2 in
- Depth (In.) 2 in
- Capillary Length (In.) 72 in
- Capillary Type Capillary
- Bulb Dia. (In.) 3/8 in
- Bulb Size Length (In.) 1-3/8
- Voltage 24
- Pilot Duty Contacts (VA) 144
- Construction Bellows are Laser welded, For Extended Life, Compact Case is Zinc Plated, Pressed Steel, Has a NEMA 1 Non-conductive, Non-corrosive Cover which is Retained by a Captive, Accessible Screw
- Application Suitable for Line or Pilot Duty Cycling of Motors, Compressors or Solenoid Valves
- Agency Compliance UL Listed
- Includes Adjustment Knob, Dual Temperature Scale, Fahrenheit and Celsius Readings, Mounting Bracket, Mounting Screws, Terminal Screws
Manufacturer Details
- Manufacturer: Ranco
- Condensed Mfg Number: O101408
- MPN: O10-1408
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032100030
- GDS Category Name: Refrigeration Controls
- GDS Family Name: A/C Refrigeration and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 39121549
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 49
- UNSPSC Commodity Name: Temperature switch
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
