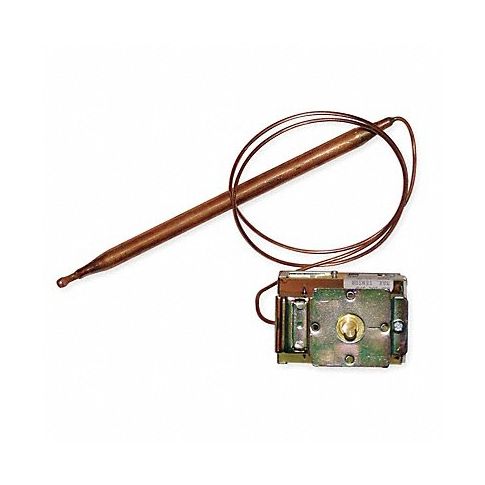

Line Volt Mechanical Tstat 120 to 277VAC MPN:C12-5010
Free Shipping
In Stock
Introducing our Line Volt Mechanical Tstat - the perfect thermostat for controlling your heating and cooling systems. This versatile remote bulb thermostat is designed for use with room air conditioners, packaged terminal air conditioners, and heat pumps. With a temperature range of 60 to 98 degrees Fahrenheit and a voltage rating of 120 to 277V AC, this thermostat offers exceptional control over your system. Its SPDT switch provides accurate and reliable operation, while its full load amps ensure maximum energy efficiency. Whether you're looking to save on energy costs or just maintain the perfect temperature in your home or office, the Line Volt Mechanical Tstat has you covered. Experience the convenience of precise control with our state-of-the-art thermostat today!
Top product features:
- SPDT switch for accurate and reliable operation
- Control range of 60 to 98 degrees Fahrenheit
- Voltage rating of 120 to 277V AC
Top product applications:
- Controlling air conditioning systems in homes or offices
- Regulating heat pumps in residential and commercial buildings
- Managing temperature settings in packaged terminal air conditioners
Technical Specifications
- Item Line Volt Mechanical Tstat
- Thermostat Switch Type SPDT
- Thermostat Control Range 60 Degrees to 98 Degrees F
- Thermostat Voltage 120 to 277V AC
- Full Load Amps @ 120VAC 15 A
- Full Load Amps @ 240VAC 15 A
- Thermostat Programmable No
- Remote Sensing Capability Yes
- Thermostat Heating/Cooling Heating/Cooling
- Thermostat Item Line Voltage Mechanical Thermostat
- Remote Sensing Bulb Included Yes
- Switch Action Open/Close on Rise
- Number of Switches 1
- Differential 3 Degrees F
- Height 3 in
- Width 2 1/4 in
- Depth 3 in
- Sensor Type Copper
- Sensing Bulb Dia. 3/8 in
- Sensing Bulb Length 9 in
- Capillary Length 36 in
- Enclosure Type None
- Inductive Amps @ 120V 20 A
- Inductive Amps @ 240V 20 A
- Contact Rating Resistive @ 120V 25 A
- Resistive Amps @ 208VAC 25 A
- Contact Rating Resistive @ 277V 16 A
- Pilot Duty Contacts (VA) 240 VA
- Mounting Type Any Position
- Mounting Location On Unit
- Standards None
Manufacturer Details
- Manufacturer: Ranco
- Condensed Mfg Number: C125010
- MPN: C12-5010
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9032100060
- GDS Category Name: Refrigeration Controls
- GDS Family Name: A/C Refrigeration and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 41112209
- UNSPSC Class ID: 22
- UNSPSC Commodity Name: Temperature and heat measuring instruments
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Thermostats
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
