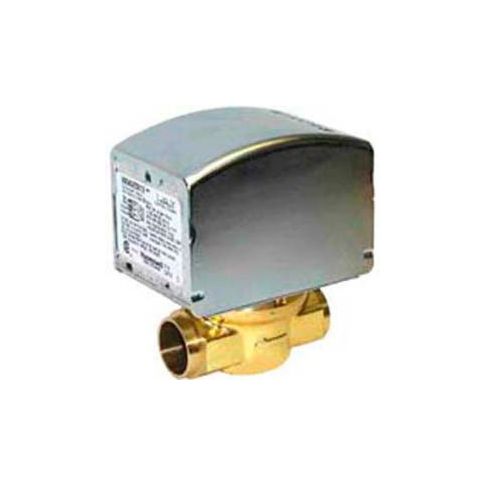

Honeywell V8043E1004 - Motorized Zone Valve 24V 1/2 inch Sweat Conn Low Voltage V8043E1004
Honeywell V8043E1004 - Motorized Zone Valve, 24V 1/2 inch Sweat Conn Low Voltage
The Honeywell V8043E1004 24V motorized zone valve includes a 1/2 sweat connection. This two-way on-off low voltage valve consists of an actuator and valve assembly for controlling the flow of hot water. The V8043E1004 valve is designed for cycling (not constantly powered on) applications and is to be used in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Features: The Honeywell V8043E1004 includes a manual opener for valve operation on power failure; valve returns to automatic position when power is restored. The V8043E1004's compact construction allows for easy installation. This valve may be installed without disassembling, while the complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system. The actuator motor may be replaced without removing the valve body or draining the system.
The Honeywell V8043E1004 24V motorized zone valve includes a 1/2 sweat connection. This two-way on-off low voltage valve consists of an actuator and valve assembly for controlling the flow of hot water. The V8043E1004 valve is designed for cycling (not constantly powered on) applications and is to be used in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Features: The Honeywell V8043E1004 includes a manual opener for valve operation on power failure; valve returns to automatic position when power is restored. The V8043E1004's compact construction allows for easy installation. This valve may be installed without disassembling, while the complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system. The actuator motor may be replaced without removing the valve body or draining the system.
Product Specifications
- BRANDHoneywell
- LENGTH INCHES5-1/2
- WIDTH INCHES4-5/7
- HEIGHT INCHES3-1/2
- PIPE SIZE DN--
- PIPE SIZE INCHES1/2
- WEIGHT LBS2.25
- MAXIMUM CLOSE-OFF PRESSURE PSI20
- MAXIMUM VELOCITY FEET/SECOND--
- CAPACITY (CV)3.5
- ELECTRICAL CONNECTIONS18" Leads (457MM leads)
- MANUAL OPENERYes
- CONNECTION TYPESweat
- APPLICATIONHydronic Control
- DESCRIPTIONZone Valve 24V 1/2" Sweat, 3.5 Cv, 18" Leads, End Switch
- AUXILIARY END SWITCHSPST
- TYPEMotorized Zone Valve
- LIMITED WARRANTY YEARS1
- MANUFACTURER'S PART NUMBERV8043E1004
Additional Information
- UPC: 85267990035
- UNSPSC: 40101851
- Package Quantity: 1
- Country of Origin: HU
- FOB Origin: NY
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 10.00
- Package Width: 8.00
- Package Height: 6.00
- Package Weight: 2.25
Product info last updated on November 7, 2024 11:51am UTC
Category: HVAC Hardware and Parts
