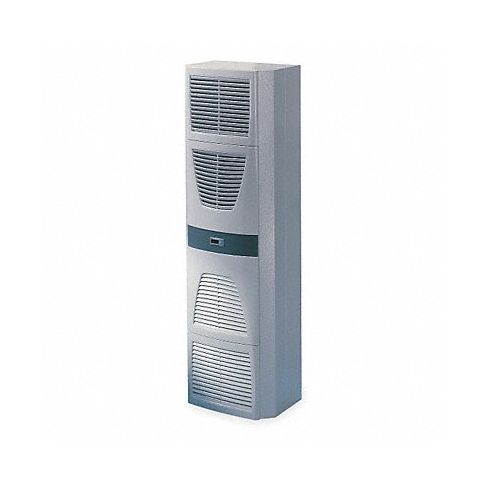

Enclosure AC Wall Mount 9392 BtuH MPN:3329500
Free Shipping
In Stock
Introducing the Rittal Enclosure AC Wall Mount Air Conditioner - the perfect cooling solution for your control room or data center needs. With a powerful 9392 BtuH cooling capacity and a robust carbon steel housing, this air conditioner is designed to withstand even the harshest environments while providing consistent performance. Featuring icing protection, startup delay, and connection for a door limit switch, this side-mount model ensures optimal heat dissipation with its positioned air inlets and outlets. The configurable alarm and logging capability allow for easy monitoring of your system, while the master-slave operation for up to 10 units provides flexibility and control over multiple units. Additionally, the adjustable temperature setpoint, ranging from 68F to 131F, ensures optimal cooling performance for your specific needs. Its status display includes enclosure temperature, making it easy to keep track of your system's performance. With its 230VAC, 1-phase, 60/50 Hz capabilities, this air conditioner is suitable for a wide range of applications and can be easily integrated into your existing systems.
Top product features:
- Icing protection: This feature ensures the air conditioner operates safely in freezing temperatures, preventing ice buildup on the coils and keeping the unit from shutting down unexpectedly.
- Startup delay: This feature allows users to set a delay before the air conditioner starts up after power has been restored, preventing unnecessary startup and extending its lifespan.
- Master-slave operation for up to 10 units: This feature enables users to connect multiple units and control them as one system, providing convenience and cost-effectiveness in larger installations.
Top product applications:
- Control room cooling: This air conditioner can maintain ideal temperatures in control rooms, ensuring comfortable working conditions for operators and preventing equipment failure due to overheating.
- Server/network room cooling: The air conditioner's consistent performance makes it an ideal solution for keeping server and network rooms at optimal temperatures to protect sensitive electronic equipment from damage caused by extreme heat.
- Industrial enclosure cooling: This product can maintain the appropriate temperature inside industrial enclosures, preventing thermal issues that could affect the functionality of electrical components or cause failures in automated systems.
Technical Specifications
- Item Enclosure Air Conditioner
- Cooling Capacity 9392 BtuH
- Housing Material Carbon Steel
- Mounting Wall Mount
- Cooling Method Refrigerant
- NEMA Enclosure Type 12
- Height 62.0 in
- Width 16.0 in
- Depth 11.0 in
- Standards CCC, CE, CSA, GS, UL/cUL Listed
- Wiring Method Terminalblock
- Amps 8.2/9.3
- Hz 50/60
- Voltage 230
- Phase Single
- Refrigerant R134a
- Control Type Comfort Controller
- Housing Color Gray (RAL 7035)
- Includes Assembly Hardware and Nano-Coated Condenser Coil and Integrated Condensate Evaporator, Mounting Template
Manufacturer Details
- Manufacturer: Rittal
- Condensed Mfg Number: 3329500
- MPN: 3329500
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: DE
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8415820105
- GDS Category Name: Electrical Enclosure Air Conditioners
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 40101701
- UNSPSC Class ID: 17
- UNSPSC Commodity Name: Cooling
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Air conditioners
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 8:28pm UTC Category: Enclosures
