Threading Insert: TLTF3R 1125, Carbide MPN:5753336
Threading Insert: TLTF3R 1125, Carbide MPN:5753336 is available to buy in increments of 10

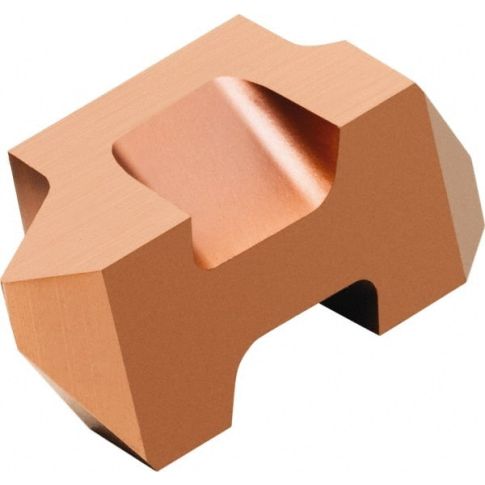

Threading Insert: TLTF3R 1125, Carbide
Threading Insert: TLTF3R 1125, Carbide TiAlN Finish, 0.60-2.50 mm & 9-44 TPI, Series Top Lok
Product Information
- : 5753336
- Coating Process: PVD
- Corner Radius (Decimal Inch): 0.0030
- Corner Radius (mm): 0.08
- External Pitch: 0.60-2.50 mm; 9-44 TPI
- Finish Coating: TiAlN
- Included Angle: 60
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 3
- Insert Style: TLTF
- Internal Pitch: 0.60 to 2.50 mm; 9 to 44 TPI
- Iso Code: TLTF-3R 1125
- Manufacturer Grade: 1125
- Maximum Depth of Cut (Decimal Inch): 0.0830
- Maximum Depth of Cut (mm): 2.11
- Series: Top Lok®
- Thickness (Decimal Inch - 4 Decimals): 0.3440
- Thickness (mm): 8.74
- Thread Standard: 60 Degree V
- Thread Type: Internal & External
- Tip to Top of Insert (Decimal Inch): 0.3440
- Tip to Top of Insert (mm): 8.74
- Width of Cutting Tip (Decimal Inch): 0.1950
- Width of Cutting Tip (mm): 4.95
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Weight: 0.27
- Prohibited States: AK,HI,PR
Product info last updated on July 16, 2024 12:02pm UTC
Category: Threading and Thread Mill Inserts
