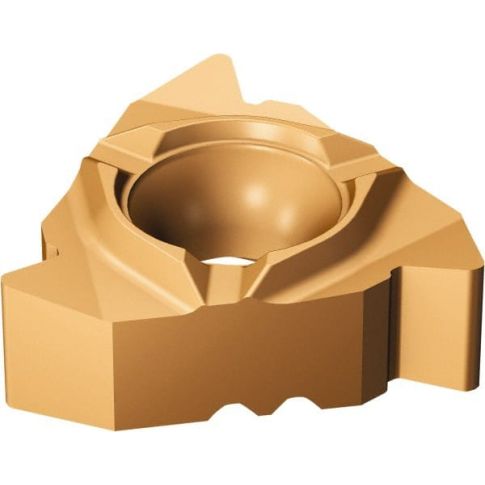

Laydown Threading Insert: 266RG16NF01A140E 1125, Solid Carbide MPN:5757918
Laydown Threading Insert: 266RG16NF01A140E 1125, Solid Carbide MPN:5757918 is available to buy in increments of 10
Laydown Threading Insert: 266RG16NF01A140E 1125, Solid Carbide
Laydown Threading Insert: 266RG16NF01A140E 1125, Solid Carbide TiCrAlN/TiAlN Finish, Right Hand External NPTF Thread, 14 TPI, 3/8" Inscribed Circle, 5/32" Thick
Product Information
- : 5757918
- Chipbreaker: A
- Coating Process: PVD
- Coating/Finish: TiAlN; TiCrAlN
- Hole Diameter (Decimal Inch): 0.1732
- Hole Diameter (Mm) ( - 0 Decimals): 4.40
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.3750
- Inscribed Circle (Inch): 3/8
- Inscribed Circle (mm): 9.53
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 16
- Insert Style: 266
- Manufacturer Grade: 1125
- Manufacturers Catalog Number: 266RG-16NF01A140E 1125
- Number of Teeth Per Side: True
- Series: CoroThread 266
- Thickness (Decimal Inch - 4 Decimals): 0.1563
- Thickness (Inch): 5/32
- Thickness (mm): 3.97
- Thread Standard: NPTF
- Thread Type: External
- Threads Per Inch: 14
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 3.74
- Package Width: 1.54
- Package Height: 0.43
- Package Weight: 0.12
- Prohibited States: AK,HI,PR
Product info last updated on October 1, 2024 3:47am UTC
Category: Threading and Thread Mill Inserts
