Laydown Threading Insert: 266RG22AC01F050E 1020, Solid Carbide MPN:5757934
Laydown Threading Insert: 266RG22AC01F050E 1020, Solid Carbide MPN:5757934 is available to buy in increments of 10

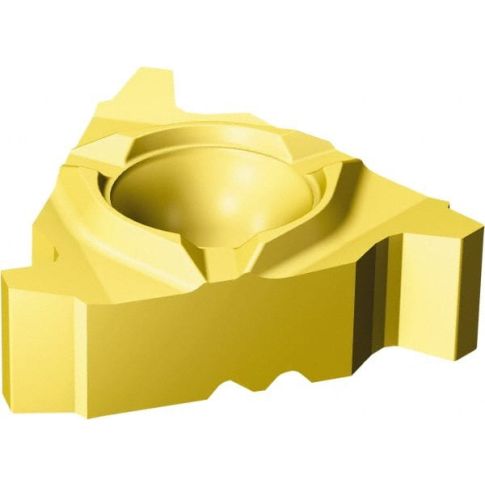

Laydown Threading Insert: 266RG22AC01F050E 1020, Solid Carbide
Laydown Threading Insert: 266RG22AC01F050E 1020, Solid Carbide TiN Finish, Right Hand External Acme Thread, 5 TPI, 1/2" Inscribed Circle, 5.56mm Thick
Product Information
- : 5757934
- Chipbreaker: F
- Coating Process: PVD
- Coating/Finish: TiN
- Hole Diameter (Decimal Inch): 0.2244
- Hole Diameter (Mm) ( - 0 Decimals): 5.70
- Included Angle: 60
- Inscribed Circle (Decimal Inch): 0.5000
- Inscribed Circle (Inch): 1/2
- Inscribed Circle (mm): 12.70
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size Code: 22
- Insert Style: 266
- Manufacturer Grade: 1020
- Manufacturers Catalog Number: 266RG-22AC01F050E 1020
- Number of Teeth Per Side: True
- Series: CoroThread 266
- Thickness (Decimal Inch - 4 Decimals): 0.2190
- Thickness (mm): 5.56
- Thread Standard: Acme
- Thread Type: External
- Threads Per Inch: 5
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: SE, Sweden
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 3.74
- Package Width: 1.54
- Package Height: 0.43
- Package Weight: 0.31
- Prohibited States: AK,HI,PR
Product info last updated on July 1, 2024 12:25am UTC
Category: Threading and Thread Mill Inserts
