Threading Insert: TLT2R 1125, Carbide MPN:5753591
Threading Insert: TLT2R 1125, Carbide MPN:5753591 is available to buy in increments of 10

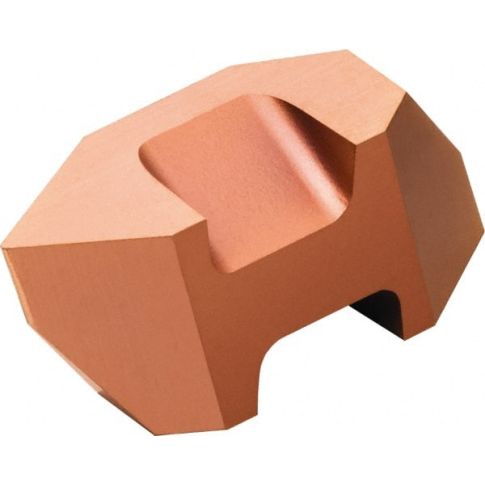

Threading Insert: TLT2R 1125, Carbide
Threading Insert: TLT2R 1125, Carbide TiAlN Finish, 0.70-3.50 mm & 7-36 TPI, Series Top Lok
Product Information
- : 5753591
- Coating Process: PVD
- Corner Radius (Decimal Inch): 0.0040
- Corner Radius (mm): 0.10
- External Pitch: 0.70-3.50 mm; 7-36 TPI
- Finish Coating: TiAlN
- Included Angle: 60
- Insert Hand: Right Hand
- Insert Material: Solid Carbide
- Insert Size: 2
- Insert Style: TLT..R
- Internal Pitch: 0.70 to 3.50 mm; 7 to 36 TPI
- Iso Code: TLT-2R 1125
- Manufacturer Grade: 1125
- Maximum Depth of Cut (Decimal Inch): 0.1299
- Maximum Depth of Cut (mm): 3.30
- Series: Top Lok®
- Thickness (Decimal Inch - 4 Decimals): 0.2190
- Thickness (mm): 5.56
- Thread Standard: 60 Degree V
- Thread Type: Internal & External
- Tip to Top of Insert (Decimal Inch): 0.2190
- Tip to Top of Insert (mm): 5.56
- Width of Cutting Tip (Decimal Inch): 0.1500
- Width of Cutting Tip (mm): 3.81
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Country of Origin: US, United States
- TAA Compliant: Yes
- UNSPSC: 23291804
- CA Restricted (Prop 65): Unknown
- Package Length: 3.74
- Package Width: 1.54
- Package Height: 0.43
- Package Weight: 0.25
- Prohibited States: AK,HI,PR
Product info last updated on October 31, 2024 12:03pm UTC
Category: Threading and Thread Mill Inserts
