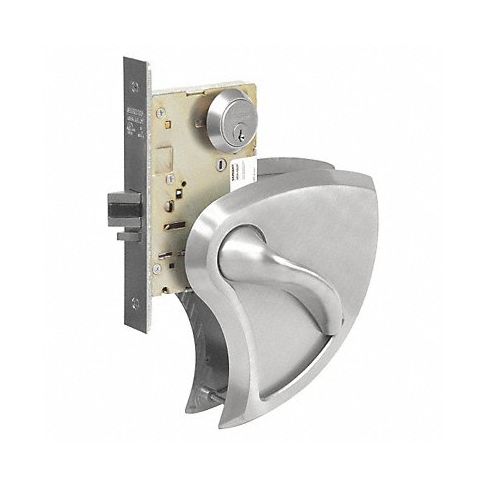

Lever Lockset Mechanical Entrance MPN:SG-8205BHW-32D RH W INSIDE TURN PIECE

Integrated lever and escutcheon combine safety and aesthetics for behavioral health environments. Tapered surfaces on all components. For use on metal and hard wood doors. Easy-to-install with standard mortise prep. Includes microshield and antimicrobial coating.

Technical Specifications

• Electrical/Mechanical Mechanical
• Lockset Handle Type Lever
• Mortise / Cylindrical Mortise
• Lockset Function Entrance
• Lockset Grade 1
• Style 8200 BHW
• Lockset Finish Dull Stainless Steel
• Keyway Type Sargent LA
• Key Type Keyed Different
• Standards ANSI A156.2, Series 4000, A117.1 Accessbility Code, Federal Specifications FF-H-106C, California Reference Code
• ADA Compliant Yes
• Lockset Fire Rating 3 hr
• Backset 2 3/4 in
• Ligature Resistant Yes
• Features ADA Compliant, Handing RH
• For Use With Hollow Metal and Wood Doors
• Includes Anti-Microbial Coating, Microshield
• Item Mortise Lockset
• Key Material Nickel Silver
• Location Type Healthcare, Institutional
• Number of Keys 2
• Required Door Thickness 1-3/4 in to 1-7/8 in
• Series 8200
• Strike Dim. 4-7/8 in x 1-1/8 in
• Strike Type ANSI
• Visual Indicator Message No Message

Manufacturer Details

• Manufacturer: Sargent
• Condensed Mfg Number: SG8205BHW32DRHWINSIDETURNPIECE
• MPN: SG-8205BHW-32D RH W INSIDE TURN PIECE

Label Details

• Hazardous Material: N
• Green Material Flag: Y
• Country of Origin: US
• CA Prop 65 Wht Label: Y
• CA Prop 65 Warning Msg Scenario: 7

Classification Details

• Harmonization Code: 8301406030
• GDS Category Name: Door Lever Locksets
• GDS Family Name: Door Locks and Deadbolts
• GDS Segment Name: Hardware
• UNSPSC: 46171503
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Locks and security hardware and accessories
• UNSPSC Commodity ID: 03
• UNSPSC Commodity Name: Lock sets
• UNSPSC Family ID: 17
• UNSPSC Family Name: Security surveillance and detection
• UNSPSC Segment ID: 46
• UNSPSC Segment Name: Defense and Law Enforcement and Security and Safety Equipment and Supplies

Shipping Details

• Not For Sale In: HI AK PR
