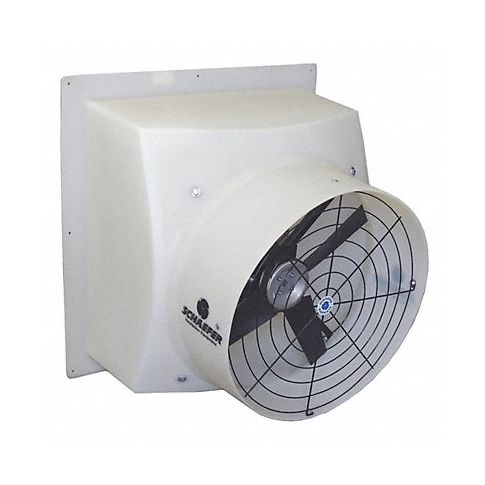

Agr ExtFn 16In Bld Dia Polyetl 115/230V MPN:PFM163P13

Flush-Mount Direct-Drive Exhaust Fans

• Rugged corrosion-resistant polyethylene housing, blades, and shutter Shipped fully assembled
Mount flush to inside wall for attachment to opening with wide, heavy-duty flange. Integrated PVC or aluminum shutter ensures longevity. Energy efficient, totally enclosed, maintenance-free motors.

Technical Specifications

• Item Agricultural Exhaust Fan
• Type Direct Drive, Preassembled, Adjustable Speed
• Propeller Dia. (In.) 16 in
• CFM @ 0.000-In. SP 3217
• CFM @ 0.050-In. SP 3085
• CFM @ 0.100-In. SP 2953
• CFM @ 0.150-In. SP 2808
• CFM/Watt @ 0.000-In. SP 9.6
• CFM/Watt @ 0.050-In. SP 9.2
• CFM/Watt @ 0.100-In. SP 8.7
• CFM/Watt @ 0.150-In. SP 8.3
• Fan RPM 1,725
• Voltage 115/230
• Hz 60
• Phase 1
• Full Load Amps 3.8/1.9
• Watts 246 W
• HP 1/3 hp
• Motor RPM 1725
• Motor Type Permanent Split Capacitor
• Motor Enclosure Totally Enclosed Air Over
• Motor Insulation Class B
• Height (In.) 19 1/4 in
• Width (In.) 19 1/4 in
• Max. Depth (In.) 24 1/2 in
• Opening Required H (In.) 20 1/2 in
• Opening Required W (In.) 19 1/2 in
• Flange Width (In.) 2 1/4 in
• Venturi Clearance Dia. (In.) 18 in
• Mounting Location Wall
• Max. Ambient Temp. (F) 104 Degrees F
• Shaft Dia. (In.) 1/2 in
• Bearing Type Permanently Lubricated Ball
• Number of Blades 3
• Propeller Material Polypropylene
• Frame Material Polyethylene
• Frame Finish Polished White Polypethylene
• Free Area (Square-Ft.) 2.57
• Agency Compliance UL Listed Motor
• For Use With General Exhaust Application
• Includes PVC Shutter

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: PFM163P13
• MPN: PFM163P13

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414519090
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
