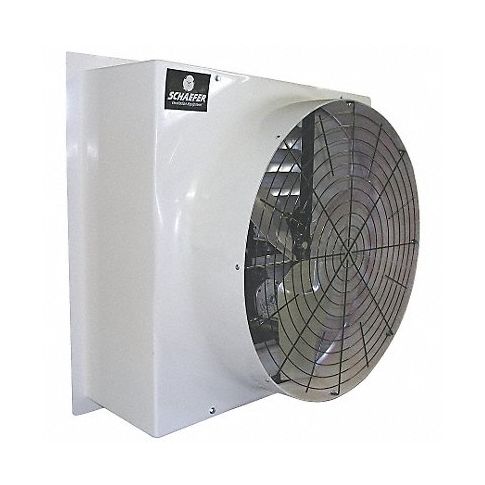

Agr ExtFn 48In Bld Dia Steel 230V MPN:FFM485G1-2
Agr ExtFn 48In Bld Dia Steel 230V is an industrial supply equipment that stands out for its powerful motor capable of delivering 15,000 rpm, making it suitable for numerous applications demanding higher power and speed. Equipped with a dual capacitor with a run capacity of 48+9A, this vacuum guarantees long-lasting performance without interruptions. Its lightweight design makes it easy to maneuver and transport from one workplace to another. Additionally, it boasts an integrated bag fill indicator that signals when it is time to empty the dirt container for maximum productivity. This robust 230V vacuum is perfect for both homeowners and professionals who require a reliable and efficient cleaning solution in commercial settings such as office buildings, schools, hospitals, warehouses or factories.
Technical Specifications
- Item Agricultural Exhaust Fan
- Type Belt Drive, Assembled, 2 Speed
- Propeller Dia. (In.) 48 in
- CFM @ 0.000-In. SP 22,010/14,358
- CFM @ 0.050-In. SP 20,570/13,419
- CFM @ 0.100-In. SP 18,924/12,345
- CFM @ 0.150-In. SP 17,073/11,138
- Fan RPM 332
- Voltage 230
- Hz 60
- Phase 1
- Full Load Amps 5.3/3.0
- Watts 746 W
- HP 1 hp
- Motor RPM 1725/1140
- Motor Type Capacitor-Start/Run
- Motor Enclosure Totally Enclosed Air Over
- Motor Insulation Class B
- Height (In.) 55 1/2 in
- Width (In.) 55 1/4 in
- Max. Depth (In.) 26 in
- Opening Required H (In.) 56 1/4 in
- Opening Required W (In.) 55 3/4 in
- Flange Width (In.) 2 3/4 in
- Venturi Clearance Dia. (In.) 49 in
- Venturi Depth (In.) 13 in
- Mounting Location Wall
- Max. Ambient Temp. (F) 104 Degrees F
- Shaft Dia. (In.) 5/8 in
- Bearing Type Permanently Lubricated Ball
- Number of Blades 5
- Propeller Material Galvanized Steel
- Frame Material Fiberglass
- Frame Finish Polished Tan Fiberglass
- Free Area (Square-Ft.) 21
- Agency Compliance UL Listed Motor
- For Use With General Exhaust Application
- Includes Aluminum Shutter and Belt Tensioner
Manufacturer Details
- Manufacturer: Schaefer
- Condensed Mfg Number: FFM485G12
- MPN: FFM485G1-2
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596595
- GDS Category Name: Axial Exhaust and Supply Fans with Motor
- GDS Family Name: Exhaust Fans
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
