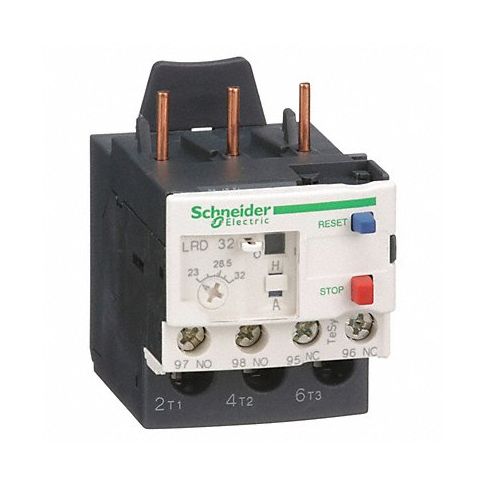

Ovrload Relay 23 to 32A 3P Class 10 690V MPN:LRD32
Free Shipping
In Stock
The TeSys IEC Overload Relay is a versatile and reliable device designed for motor control applications in industrial settings. This Class 10 overload relay has an adjustable current range of 23 to 32A, making it suitable for a wide range of power needs. The bimetallic element offers precise sensing and adjustment, ensuring efficient protection against overloads and providing the optimal safety solution for motors. With its sealable design, lockable trip and reset switches, and manual or auto-reset options, this overload relay is easy to install and customize according to your needs. Paired with Mfr. Series LC1D25 to LC1D32 contactors, it forms a complete motor starter that provides the optimal level of protection and control for 3-phase applications. Whether you are in the manufacturing, construction, or agricultural industry, the TeSys IEC Overload Relay is an essential component for your motor control system.
Top product features:
- Bimetallic element for precise sensing and adjustment
- Class 10 overload relay protection for motors
- Lockable trip and reset switches for safety
Top product applications:
- Motor starting and stopping in industrial settings
- Protection against overloads for 3-phase motors in harsh environments
- Control and monitoring of motor performance through lockable trip and reset switches
Technical Specifications
- Item - Relay IEC Style Overload Relay
- Use With - Contactors and Starters Mfr. Series LC1D25 to LC1D32 Contactors
- Overload Relay Current Range 23 to 32A
- Trip Class - Overload 10
- Number of Poles 3
- Reset Type - Relay Manual
- Body Height - Relay 3.62 in
- Body Width - Relay 1.77 in
- Body Depth - Relay 2.75 in
- Overall Height - Relay 3.62 in
- Sensing Method Bimetallic
- Features Single Phase Sensitivity, Differential
- Standards ATEX D 94/9/CE, CSA, GOST, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: LRD32
- MPN: LRD32
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: FR
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536304000
- GDS Category Name: IEC Overload Relays
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
