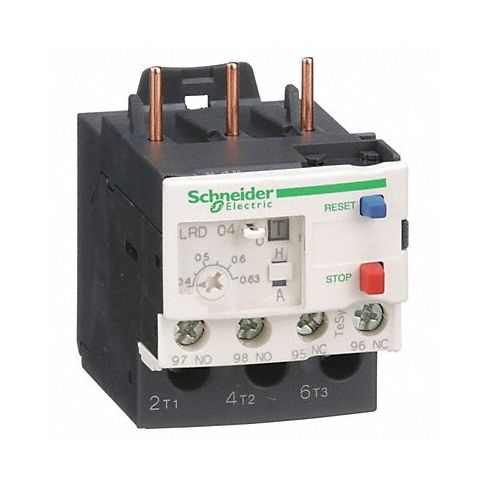

Overload Relay Class 10 0.4 to 0.63A MPN:LRD04

TeSys™ IEC Contactors and Overload Relays
For industrial motor control applications, combine a contactor with an overload relay to make a complete motor starter. Rated 600VAC. Saddle clamp terminals. DIN rail• or panel-mount.
UL Listed, CSA and CE Certified.
Overload Relays
For 3-phase applications. Bimetallic elements. Class 10 trip characteristics with 1-phase sensitivity. Ambient compensated. Adjustable current range. Lockable, sealable, manual/auto reset, test trip. Mount to underside of contactor.

Technical Specifications

• Item - Relay IEC Style Overload Relay
• Use With - Contactors and Starters Mfr. Series LC1D09 to LC1D32 Contactors
• Overload Relay Current Range 0.40 to 0.63A
• Trip Class - Overload 10
• Number of Poles 3
• Reset Type - Relay Manual
• Body Height - Relay 3.62 in
• Body Width - Relay 1.77 in
• Body Depth - Relay 2.75 in
• Overall Height - Relay 3.62 in
• Sensing Method Bimetallic
• Features Single Phase Sensitivity, Differential
• Standards ATEX D 94/9/CE, CSA, GOST, UL

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: LRD04
• MPN: LRD04

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: FR
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8537109090
• GDS Category Name: IEC Overload Relays
• GDS Family Name: Starters and Contactors
• GDS Segment Name: Electrical
• UNSPSC: 39121520
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 20
• UNSPSC Commodity Name: Overload relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
