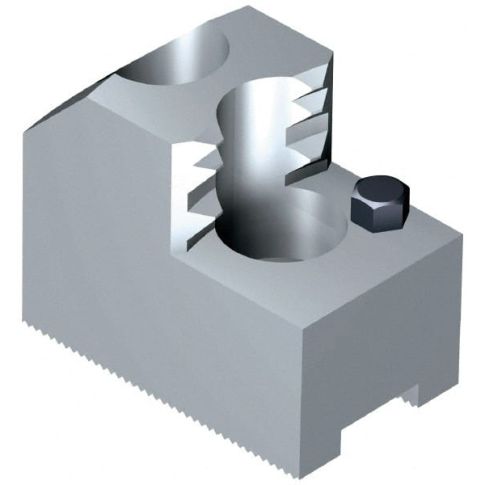

Hard Lathe Chuck Jaw: 254 mm Max Chuck Dia, Top MPN:138121
Hard Lathe Chuck Jaw: 254 mm Max Chuck Dia, Top
Hard Lathe Chuck Jaw: 254 mm Max Chuck Dia, Top 57.15 mm OAH, 30 mm Between Mount Hole Centers, Steel
Product Information
- : 138121
- Distance Between Mount Hole Centers (Decimal Inch): 1.1811
- Distance Between Mount Hole Centers (mm): 30.00
- Groove Width (Decimal Inch): 0.6299
- Groove Width (mm): 16.00
- Jaw Interface Type: Serrated
- Jaw Type: Top
- Material: Steel
- Maximum Compatible Chuck Diameter (mm): 254.00
- Maximum External Chucking Diameter (Decimal Inch): 6.8100
- Maximum Internal Chucking Diameter (mm): 173.00
- Minimum Compatible Chuck Diameter (Decimal Inch): 10.0000
- Minimum Internal Chucking Diameter (Decimal Inch): 5.0394
- Minimum Internal Chucking Diameter (mm): 128.00
- Number of Jaws: 3
- Overall Height (Mm - 5 Decimals): 57.15
- Slot Width: 16.00
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23153000
- CA Restricted (Prop 65): Unknown
- Package Weight: 6.00
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:47am UTC
Category: Lathe Chucks and Accessories
