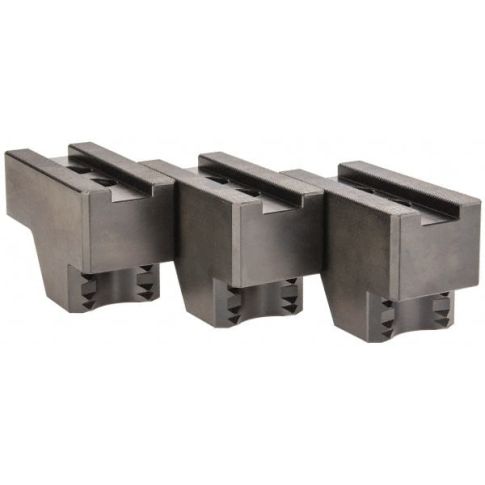

Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top MPN:138132

Discount: See in Cart
Free Shipping
In Stock
Brand: Schunk
Part #: 138132
SKU
310-84822766
$952.49
Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top

The hard lathe chuck jaw is an essential piece of equipment for any professional in need of accurate and reliable turning operations. Its robust design features a large maximum chuck diameter of 304.8mm, making it suitable for accommodating various workpiece dimensions with ease. By providing unrivaled holding power and superior durability during operation, this high-quality lathe jaw eliminates the need for frequent replacement, thus saving time and money in the long run. Engineered to meet or exceed industry standards, this tool is a must-have for industrial machinists seeking precision results in automotive, aerospace, medical or other demanding applications where quality matters most.

Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top 63.5 mm OAH, 30 mm Between Mount Hole Centers, Steel

Product Information

  • : 138132
  • Distance Between Mount Hole Centers (Decimal Inch): 1.1811
  • Distance Between Mount Hole Centers (mm): 30.00
  • Groove Width (Decimal Inch): 0.8268
  • Groove Width (mm): 21.00
  • Jaw Interface Type: Serrated
  • Jaw Type: Top
  • Material: Steel
  • Maximum Compatible Chuck Diameter (mm): 304.80
  • Maximum External Chucking Diameter (Decimal Inch): 6.8100
  • Maximum Internal Chucking Diameter (mm): 173.00
  • Minimum Compatible Chuck Diameter (Decimal Inch): 12.0000
  • Minimum Internal Chucking Diameter (Decimal Inch): 4.2520
  • Minimum Internal Chucking Diameter (mm): 108.00
  • Number of Jaws: 3
  • Overall Height (Mm - 5 Decimals): 63.50
  • Slot Width: 21.00

Additional Information

  • Hazardous Materials: No, oK to Ship Via Air
  • Material Safety Data Sheet (MSDS) Required: No
  • Country of Origin: DE, Germany
  • TAA Compliant: Yes
  • UNSPSC: 23153000
  • CA Restricted (Prop 65): Unknown
  • Package Weight: 10.00
  • Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:39am UTC Category: Lathe Chucks and Accessories
