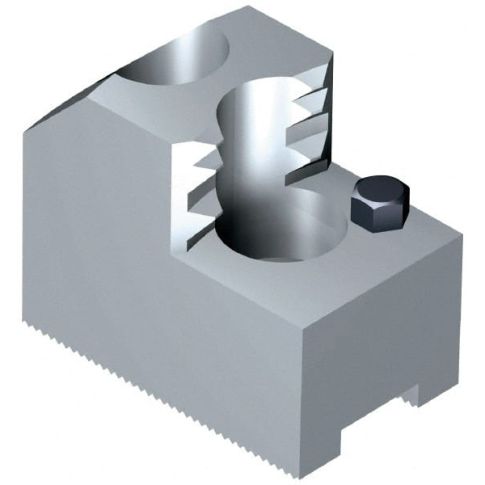

Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top MPN:138133
Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top
The hard lathe chuck jaw is an indispensable tool for professionals working in aerospace, automotive, die & mold, and medical industries, where precision machining is of utmost importance. Its large maximum chuck diameter of 304.8mm allows it to accommodate a wide range of workpiece dimensions with ease, ensuring that users can complete their tasks accurately and efficiently. By providing superior holding power and durability during operation, this high-quality lathe jaw eliminates the need for frequent replacement, reducing downtime and saving money in the long run. With features designed to meet or exceed industry standards, the hard lathe chuck jaw is a must-have for any professional seeking precision results.
Hard Lathe Chuck Jaw: 304.8 mm Max Chuck Dia, Top 63.5 mm OAH, 30 mm Between Mount Hole Centers, Steel
Product Information
- : 138133
- Distance Between Mount Hole Centers (Decimal Inch): 1.1811
- Distance Between Mount Hole Centers (mm): 30.00
- Groove Width (Decimal Inch): 0.8268
- Groove Width (mm): 21.00
- Jaw Interface Type: Serrated
- Jaw Type: Top
- Material: Steel
- Maximum Compatible Chuck Diameter (mm): 304.80
- Maximum External Chucking Diameter (Decimal Inch): 9.3700
- Maximum Internal Chucking Diameter (mm): 238.00
- Minimum Compatible Chuck Diameter (Decimal Inch): 12.0000
- Minimum Internal Chucking Diameter (Decimal Inch): 6.8110
- Minimum Internal Chucking Diameter (mm): 173.00
- Number of Jaws: 3
- Overall Height (Mm - 5 Decimals): 63.50
- Slot Width: 21.00
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: DE, Germany
- TAA Compliant: Yes
- UNSPSC: 23153000
- CA Restricted (Prop 65): Unknown
- Package Weight: 9.00
- Prohibited States: AK,HI,PR
Product info last updated on January 1, 2025 1:47am UTC
Category: Lathe Chucks and Accessories
